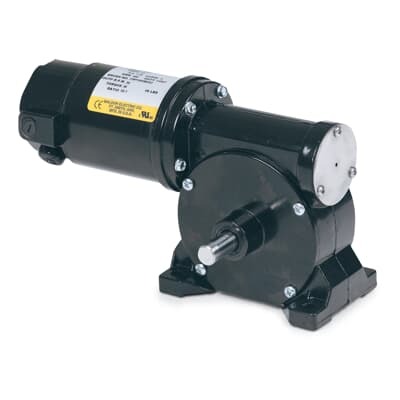

ABB GP233024 DC Permanent Magnet Motor - CB Gearbox, CE UR
Part Number: 7BGP233024
Quick Summary
DC Permanent Magnet motors like the ABB GP233024 deliver precise torque for compact, low-speed drives used in packaging, conveyors, and small automation lines. This model pairs a 1/14 HP DC PM motor with a CB-0 gearbox inside a rugged TENV enclosure, designed for reliable operation up to 40 °C ambient. Engineers often contend with heat, control compatibility, and maintenance, and GP233024 addresses these by using a 180 V armature supply and a modest 0.42 A rated current. With CE and UR certifications, it meets global compliance requirements, while the Baldor-Reliance branding signals trusted performance. Stock is distributed across multiple warehouses, reducing lead times and supporting predictable project timelines.
Product Information
Extended Description
7BGP233024 ABB: 1/14HP,DC,CB-0,2318P,TENV,GM
ABB Type Designation
1/14HP,DC,CB-0,2318P,TENV,GM
Ambient Temperature
40 °C
Armature Current
0.4 A
Armature Inertia
0.011 ft·lbf
Armature Voltage
180 V
Brand / Label
Baldor-Reliance
Catalog Number
GP233024
Certification Agency
CE | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Gearbox Style
CB
Global Commercial Alias
GP233024
Gross Volume
992 in³
Gross Weight
8 lb
Horsepower Rating UL/CSA
0.067 Hp
Invoice Description
1/14HP,DC,CB-0,2318P,TENV,GM
Made To Order
No
Medium Description
TENV Enclosure, (GP233024)
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Output Shaft Speed
76 r/min
Product Name
DC Permanent Magnet
Product Net Depth / Length
15.5 in
Product Net Height
8 in
Product Net Weight
8 lb
Product Net Width
8 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
.42 A
Rated Torque
33.0 N·m
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Short Description
TENV,
Stocked At (Warehouses)
Singapore, Singapore | China | Alaska, United States
Feature → Business Impact → Application: The GP233024 combines a DC permanent magnet motor with a CB-0 gearbox to deliver compact, high-torque output suitable for small machinery and conveyors. This configuration reduces footprint while increasing torque density, enabling more efficient layouts and simpler installation in tight spaces. Application: packaging lines and light-duty automation where precise speed control and reliable stall torque are essential. Feature → Business Impact → Application: The TENV enclosure rated for 40 °C ambient conditions protects components from heat and dust, extending service life and reducing maintenance intervals. Application: manufacturing floors with moderate heat or crowded control cabinets where enclosure integrity is critical. Feature → Business Impact → Application: Electrical specs—180 V armature voltage, 0.42 A current, 0.067 HP, 33.0 N·m torque, and 76 r/min output—provide straightforward drive compatibility and predictable performance curves. Application: DC drive systems and gear-motor assemblies needing smooth torque delivery and easy control. Feature → Business Impact → Application: Robust steel frame and 8 lb weight facilitate installation, vibration resistance, and quick replacement in field service. Application: retrofit projects and general maintenance where downtime costs must be minimized. Feature → Business Impact → Application: CE and UR certifications support global compliance, reducing risk in multi-region deployments. Application: international projects, OEM assemblies, and regulated industries seeking verified quality. The result is measurable improvements in efficiency, uptime, and total cost of ownership while maintaining compatibility with Baldor-Reliance catalogs and standard stock.
