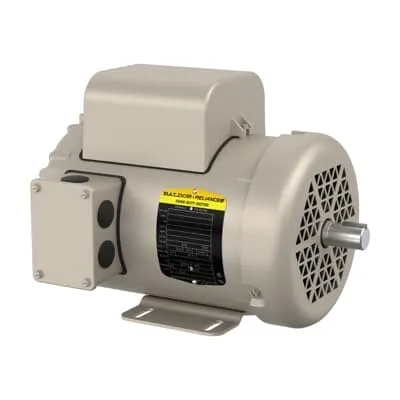

ABB 7BGSL3509M Farm Duty Motor - CSA UR Certification
Part Number: 7BGSL3509M
Quick Summary
Farm Duty Motor 7BGSL3509M delivers reliable 1.5 HP performance at 208 V for grain stirring and other agricultural applications. In demanding farm environments, downtime due to misalignment, heat, and premature wear can throttle productivity. This motor's robust TEFC enclosure and rugged 56Z frame help resist dust, vibration, and temperature swings, while direct-on-line starting supports fast installation with minimal footprint. It carries CSA and UR certifications for safety compliance and a NEMA design L footprint, ensuring compatibility with common supplier specs. With stock availability across multiple warehouses and a 0-day lead time, it streamlines procurement and reduces maintenance planning, enabling steady harvest cycles and predictable ROI.
Product Information
Extended Description
7BGSL3509M ABB: Farm Duty Motor 1.5 Hp 208 V (GSL3509M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1750RPM,1PH,60HZ,56Z,3522LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
GSL3509M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYG630: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
GSL3509M
Gross Volume
2110.969 inÂł
Gross Weight
41 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,1750RPM,1PH,60HZ,56Z,3522LC,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Grain Stirring, 1.5 HP, 1800 RPM, Frame Size 56Z, Standard Mounting, 1 Phase, TEFC Enclosure, 208-230 V, 60 Hz (GSL3509M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56Z
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
94 %
Product Name
Grain Stirring
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
41 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.9 A | 6.4 A
Rated Efficiency
80 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56Z, Standard, 1 PH, TEFC, 208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
J
Voltage Rating
208 V | 230 V
Feature: TEFC enclosure and 56Z frame provide rugged protection against dust, moisture, and farm debris. Business Impact: Extends bearing life and reduces unscheduled downtime in harsh environments. Application: Grain handling, mixers, and augers in barns and processing facilities. Long-tail keywords: TEFC motor, 56Z frame, rugged industrial motor. Feature: 1.5 HP, 208-230 V, 60 Hz single-phase design. Business Impact: Compatible with standard farm power and delivers reliable torque without complex drives. Application: Small to mid-size grain stirring equipment and augers. Long-tail keywords: single-phase farm motor, 208-230V motor, 1.5 HP motor. Feature: 4-pole, 1750 r/min operation with direct-on-line starting. Business Impact: Consistent speed, predictable load handling, and quick installation. Application: Continuous-duty conveyors and mixers in agricultural setups. Long-tail keywords: 4-pole motor, single-speed drive. Feature: NEMA Design L and rolling element bearings (6205) with Regreasable lubrication. Business Impact: Improved reliability and easier maintenance cycles, lowering lifecycle costs. Application: Farm conveyors and agitators. Long-tail keywords: NEMA L design, ball bearings, regreasable. Feature: Foot-mounted, horizontal mounting (F1) with Standard Drive End Flange. Business Impact: Simplifies retrofits and new installs, reduces mounting clearance issues. Application: Grain-stirring machines and farm-scale processing lines. Long-tail keywords: foot mounted motor, horizontal mounting, standard flange. Feature: Stocked At Warehouses (US & Global), 0-day Lead Time. Business Impact: Fast delivery, reduced downtime for critical farm cycles. Application: Emergency replacements and planned maintenance. Long-tail keywords: ready-to-ship motors, 0-day lead time. Feature: CSA | UR Certification. Business Impact: Regulatory compliance and safer integration with existing control systems. Application: Agricultural equipment and processing lines requiring recognized safety standards. Long-tail keywords: CSA UR certified motor, safety-compliant motor.
Get a Quick Quote for a ABB 7BGSL3509M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BGSL3509M?
Enquire Now
FAQs
This is a single-phase motor rated for 208-230 V at 60 Hz, with a nominal full-load current around 6.4–6.9 A. It supports direct-on-line starting for fast, simple commissioning in standard farm electrical supplies.
Yes. It delivers 1.5 HP at 1750 r/min within a 56Z frame and TEFC enclosure, designed for continuous farm-duty use. Its horizontal, foot-mounted orientation simplifies integration with grain handling and mixer systems.
The motor carries CSA and UR certification, highlighting safety and regulatory compliance for industrial and agricultural installations. It also uses a NEMA-design L configuration, helping ensure compatibility with common control hardware.
Choose a horizontal, foot-mounted setup with the standard drive-end flange (F1). Direct-on-line starting minimizes wiring and panel space, while the TEFC enclosure provides solid protection against dust and moisture in farm environments.
Regreasable bearings and robust construction support longer intervals between servicing, reducing maintenance costs. With 0-day lead time and stocked warehouses, you can minimize downtime and improve overall equipment uptime and return on investment.
