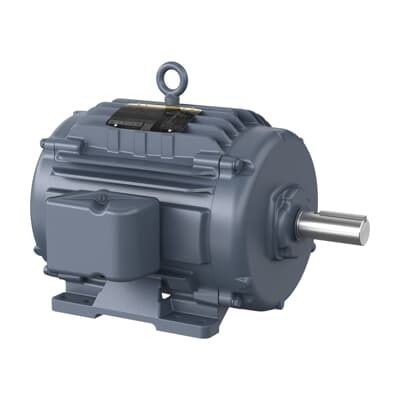

ABB 7BHBAO2333T Motor - 15 HP, 60 Hz, Premium Efficiency
Part Number: 7BHBAO2333T
Quick Summary
ABB 7BHBAO2333T Motor is engineered for critical cooling applications in industrial systems. Engineers often face energy waste and overheating when selecting a high-horsepower drive for continuous-duty cooling fans or pumps. This model carries CSA EEV, CURUSEEV, and NEMA Premium certifications, with WEEE compliance, underscoring energy efficiency and safety for regulated environments. Dual voltage 230/460 V and a TEAO enclosure simplify installation and wiring while minimizing enclosure-related heat. The 15 HP motor aligns with 1765 rpm nominal speed and a 254T frame, delivering reliable performance in HVAC and process cooling, while supporting a strong total cost of ownership through reduced downtime and lower energy costs.
Product Information
Extended Description
7BHBAO2333T ABB: Critical Cooling 15 Hp 230 V (HBAO2333T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15 AIR OVERHP,1765RPM,3PH,60HZ,254T
Ambient Temperature
40 °C
Bearing
6309, Sealed Bearing
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
HBAO2333T
Certification Agency
CSA EEV | CURUSEEV | NEMA_PREMIUM | WEEE
Country of Origin
United States (US)
Customs Tariff Number
8414596590
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
HBAO2333T
Gross Volume
9651.933 in³
Gross Weight
268 lb
Insulation Class
H
Invoice Description
15 AIR OVERHP,1765RPM,3PH,60HZ,254T,0944
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Critical Cooling, 15 HP, 1800 RPM, Frame Size 254T, Standard Mounting, 3 Phase, TEAO Enclosure, 230/460 V, 60 Hz (HBAO2333T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
84 %
Product Name
Critical Cooling
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
268 lb
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
36.2 A | 18.1 A
Rated Efficiency
92.40 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7B09M871T597G2
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
15 HP, 1800 RPM, Frame Size 254T, Standard, 3 PH, TEAO, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Frame and installation reliability: The 254T frame with a foot-mounted base provides a stable, vibration-lean platform that reduces downtime and helps achieve predictable bearing life in conveyors, pumps and fans. This translates to fewer maintenance cycles and lower total cost of ownership. In practice, this means quicker commissioning on retrofit projects and easier service access in tight machine rooms. Energy efficiency and power versatility: With dual voltage 230/460 V and a TEAO enclosure, wiring complexity is minimized and enclosure cooling needs are reduced. This supports greener operations and lower cooling loads in HVAC systems, chillers, and process cooling lines while preserving torque across load steps. Performance and reliability: The motor runs at 15 HP with 1765 r/min nominal speed, 3-phase, 60 Hz, and a robust 4-pole design. Rated efficiency is 92.40%, delivering strong torque at start-up with direct-on-line starting to simplify drive trains and reduce soft-start requirements in demanding applications. Durability and lifecycle value: Sealed 6309 bearings, 1.63 in shaft diameter, and a TEAO enclosure create a compact, rugged package designed for continuous duty. This reduces lubricant maintenance, extends service intervals, and supports high uptime in process cooling, pumps and fans across manufacturing environments. Compliance and logistics leverage: With certifications including CSA EEV, CURUSEEV, and NEMA Premium, plus WEEE compliance, this motor aligns with regulatory expectations. Regional stocking across multiple warehouses shortens lead times, enabling rapid deployment for repair or expansion projects.
