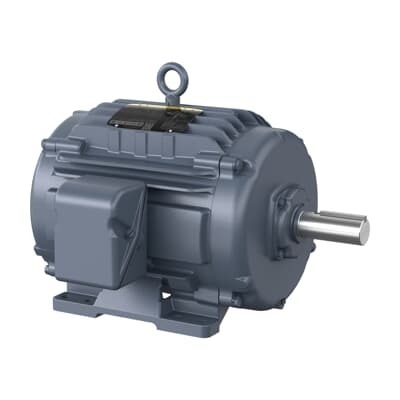

ABB HBAO2334T Critical Cooling 20 HP Motor - IE3 Premium
Part Number: 7BHBAO2334T
Quick Summary
ABB HBAO2334T motor provides 20 HP cooling drive for industrial equipment. Designed to reduce overheating and downtime, it supports continuous operation in demanding environments. The unit leverages IE3 Premium Efficiency, a TEAO enclosure, and a NEMA-aligned design to meet energy and reliability targets. This solution also aligns with Baldor-Reliance compatibility and US-origin stock for streamlined procurement and service因此.
Product Information
Extended Description
7BHBAO2334T ABB: Critical Cooling 20 Hp 230 V (HBAO2334T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20 AOHP,1770RPM,3PH,60HZ,256T,0960M
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
HBAO2334T
Certification Agency
CURUSEEV | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
HBAO2334T
Gross Volume
9651.933 in³
Gross Weight
322 lb
Insulation Class
H
Invoice Description
20 AOHP,1770RPM,3PH,60HZ,256T,0960M,TEAO
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Critical Cooling, 20 HP, 1800 RPM, Frame Size 256T, Standard Mounting, 3 Phase, 230/460 V, 60 Hz (HBAO2334T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
83 %
Product Name
Critical Cooling
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
322 lb
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
48 A | 24 A
Rated Efficiency
93 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B09T117T459G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
20 HP, 1800 RPM, Frame Size 256T, Standard, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 20 HP, 3-phase motor delivers robust thermal management with a 230 V / 460 V, 60 Hz input, 256T frame, and 4-pole configuration, enabling efficient operation in compact footprints and reducing grid stress in critical cooling loops. Benefit: lower energy consumption, extended motor life, and predictable performance under varying load; Application: cooling systems in plastics, metalworking, and processing lines that require precise heat removal with minimal maintenance. Feature → Business Impact → Application: IE3 Premium Efficiency improves overall energy cost per hour, supporting sustainability goals and reducing total cost of ownership. Benefit: lower operating costs and compliance with energy-use targets; Application: continuous duty fans and chillers where energy savings compound over long runtimes. Feature → Business Impact → Application: TEAO enclosure and foot-mounted 256T frame simplify installation and serviceability. Benefit: faster commissioning, reduced mounting complexity, and easier retrofits; Application: retrofit projects in OEM machines or upgrade paths in existing plant infrastructure. Feature → Business Impact → Application: Direct-on-line starting (DOL) and 3-phase drive support easy integration with existing electrical infrastructure. Benefit: simpler start-up sequences and reduced downtime; Application: line-start cooling modules that require immediate torque and reliable startup. Feature → Business Impact → Application: NEMA design A, 6309 ball bearings, and Keine-lubrication design offer extended life and reduced maintenance. Benefit: longer maintenance intervals and lower lifecycle costs; Application: high-load cooling fans in harsh plant environments that demand robust bearings and durable construction.
Get a Quick Quote for a ABB 7BHBAO2334T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BHBAO2334T?
Enquire Now
FAQs
Yes. The HBAO2334T is a foot-mounted 256T frame motor featuring a TEAO enclosure, designed for straightforward mounting in existing equipment footprints. This simplifies retrofit projects and minimizes enclosure space requirements while ensuring cooling performance remains uninterrupted in harsh environments.
The unit operates as a 3-phase, 4-pole motor at 60 Hz with voltage ratings of 230 V or 460 V. It uses Direct-On-Line (DOL) starting, enabling rapid engagement with standard plant power systems and reducing startup delays in cooling loops and process lines.
Best suited for critical cooling in plastics, metalworking, and processing equipment, where 20 HP provides ample torque for fans and pumps while maintaining stable temperatures. The motor’s 256T frame, NEMA-aligned design, and IE3 efficiency support continuous operation with reliable thermal management.
The motor adheres to IE3 premium efficiency, supports NEMA design guidelines, and carries relevant certifications (CUR/ WEEE). It is designed for continuous duty and operates within 230/460 V at 60 Hz, suitable for plant-wide compliance and energy targets.
With a TEAO enclosure and robust bearing arrangement (6309 ball bearings), maintenance intervals are extended and lubrication needs reduced. Its 0-day lead time stock in multiple warehouses improves uptime, while energy efficiency and durable construction translate to lower total cost of ownership over the motor’s service life.
