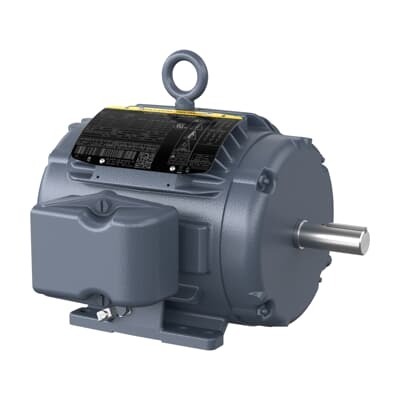

ABB 7BHBAO3586T Motors & Drives - Premium Efficiency (NEMA Premium)
Part Number: 7BHBAO3586T
Quick Summary
ABB 7BHBAO3586T is a 2 HP, 230 V motor designed for critical cooling applications in industrial equipment. This compact three-phase solution delivers reliable torque while minimizing energy waste in demanding environments. In manufacturing, uptime, predictable cooling performance, and fast replacement are essential, and this motor is engineered to meet those needs. Certifications include CSA, CUR/USEEV, and NEMA Premium, ensuring electrical safety and energy efficiency compliance across North America. WEEE support aligns with sustainable disposal practices. The TEAO enclosure, 145T frame, and foot-mounted design simplify installation and service, while stock availability and 0-day lead times help procurement avoid costly project delays.
Product Information
Extended Description
7BHBAO3586T ABB: Critical Cooling 2 Hp 230 V (HBAO3586T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2 AOHP,-RPM,3PH,60HZ,145T,0532M,TEA
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
HBAO3586T
Certification Agency
CSA | CURUSEEV | NEMA_PREMIUM | WEEE
Country of Origin
United States (US)
Customs Tariff Number
84145980
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
HBAO3586T
Gross Volume
3496.049 in³
Gross Weight
64 lb
Insulation Class
H
Invoice Description
2 AOHP,-RPM,3PH,60HZ,145T,0532M,TEAO,F1
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Critical Cooling, 2 HP, 3600 RPM, Frame Size 145T, Standard Mounting, 3 Phase, 230/460 V, 60 Hz (HBAO3586T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
85 %
Product Name
Critical Cooling
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
64 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.1 A | 2.55 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B05H189W115G2
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
2 HP, 3600 RPM, Frame Size 145T, Standard, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: Critical Cooling 2 HP motor, 3-phase, 60 Hz, available at 230/460 V. Business Impact: Maintains steady cooling performance under high thermal load, reducing process variability and downtime. Application: Cooling loops, process cooling pumps, and industrial fans in OEM machinery. Feature: TEAO enclosure with 145T frame and foot mounting. Business Impact: Easier installation, compact footprint, and straightforward maintenance access, cutting commissioning time. Application: Retrofit into existing equipment or new builds with standard mounting. Feature: Premium Efficiency (86.50%) and NEMA Premium designation. Business Impact: Lower energy consumption, reduced heat generation in electrical cabinets, and improved compliance with efficiency standards. Application: Continuous-duty drive systems in packaging, plastics, and metal fabrication lines. Feature: Direct-on-line starting and 3-phase, 60 Hz operation. Business Impact: Simplified wiring, reduced inrush control requirements, and faster startup in line-mside equipment. Application: Conveyors, pumps, and fans that require reliable, immediate torque. Feature: Stocked-at warehouses and 0-day lead time. Business Impact: Minimized downtime and faster project execution with regional availability. Application: OEMs and integrators needing rapid deployment. Feature: Bearing and mechanical robustness (6205 sealed bearing, shaft 0.88 in, 64 lb weight). Business Impact: Longer service intervals, lower maintenance costs, and improved reliability in harsh environments. Application: Heavy-duty industrial drives and cooling systems in Manufacturing and process industries.
Get a Quick Quote for a ABB 7BHBAO3586T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BHBAO3586T?
Enquire Now
FAQs
This unit is foot-mounted with a TEAO enclosure and a 145T frame. It operates at 230 V or 460 V, 3-phase, 60 Hz, and starts Direct on Line, simplifying wiring and commissioning.
It delivers 2 HP with a rated speed of 3450 r/min (3600 r/min synchronous), 5.1 A nominal current, and 2.55 A under dual-condition operation, making it reliable for continuous cooling duties.
Yes. With a 145T frame, horizontal mounting, and 3-phase 60 Hz operation, it is well-suited for cooling loops, conveyors, and pump drives in manufacturing environments.
The motor carries CSA, CUR/USEEV, NEMA Premium, and WEEE certifications, ensuring electrical safety, energy efficiency, and responsible end-of-life handling.
Premium efficiency reduces energy costs, and sealed bearings plus a robust design lower maintenance frequency. Ready stock from multiple warehouses minimizes downtime and accelerates project delivery.
