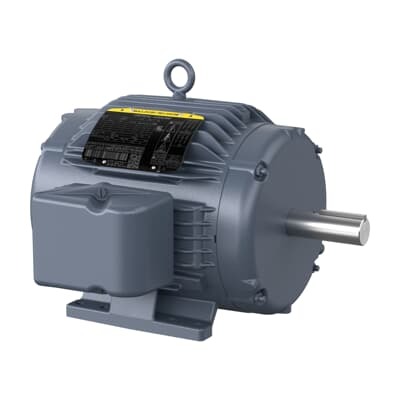

ABB 7BHBAO3769T Motor - Premium Efficiency (NEMA 12-12)
Part Number: 7BHBAO3769T
Quick Summary
ABB 7BHBAO3769T motor is a high-efficiency, 7.5 HP three-phase drive designed for critical cooling applications in manufacturing and process environments. This solution targets energy waste, downtime, and installation complexity common to OEMs and maintenance teams. It meets rigorous standards such as CSA, CUR USEEV, and NEMA Premium efficiency, with WEEE compliance for end-of-life handling. The 213T frame with 230/460 V options provides seamless integration with existing motor banks and VFDs, while its TEAO enclosure simplifies cooling paths. Built for continuous operation in harsh production lines, it reduces lifecycle costs and boosts uptime through dependable torque and straightforward servicing. In practice, it supports streamlined maintenance programs and faster spare-part alignment for plant-wide reliability.
Product Information
Extended Description
7BHBAO3769T ABB: Critical Cooling 7.5 Hp 230 V (HBAO3769T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5AOHP,3515RPM,3PH,60HZ,213T,0736M
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
HBAO3769T
Certification Agency
CSA | CURUSEEV | NEMA_PREMIUM | WEEE
Country of Origin
United States (US)
Customs Tariff Number
8466939885
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
HBAO3769T
Gross Volume
9144.346 in³
Gross Weight
173 lb
Insulation Class
H
Invoice Description
7.5AOHP,3515RPM,3PH,60HZ,213T,0736M,TEAO
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Critical Cooling, 7.5 HP, 3600 RPM, Frame Size 213T, Standard Mounting, 3 Phase, 230/460 V, 60 Hz (HBAO3769T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
90 %
Product Name
Critical Cooling
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
173 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.2 A | 8.6 A
Rated Efficiency
91 %
Rated Speed
3525 r/min
Replaced Product ID (OLD)
7B07M778W280G3
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Shaft Grounding
Shaft Grounding
Short Description
7.5 HP, 3600 RPM, Frame Size 213T, Standard, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
The 7.5 HP, 3-phase motor operates at 60 Hz with a 2-pole design, delivering a synchronous speed of 3600 r/min and a rated speed of 3525 r/min. This combination improves process stability and energy efficiency in critical cooling cycles, making it ideal for cooling systems and conveyors. The TEAO enclosure and a 213T frame enable straightforward installation and maintenance, with a foot-mounted, horizontal orientation that reduces mounting time and enclosure costs. Direct on line starting minimizes startup components, allowing OEMs to simplify control schemes and shorten commissioning times. Premium efficiency at 91% and a service factor of 1.15 translate into lower energy bills and greater drive-system margin for high-demand cycles. Certifications (CSA, CUR USEEV, NEMA Premium, WEEE) support regulatory compliance and audits, while the US origin reinforces supply-chain reliability. Stocked at multiple warehouses with 0-day lead times further reduce procurement risk and downtime for new builds or upgrades. This motor is well-suited for industries requiring robust cooling, precise torque, and rapid installation within tight maintenance windows.
