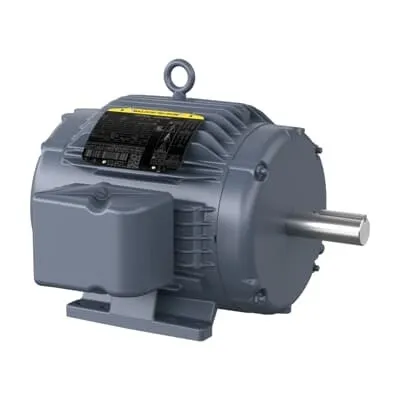

ABB 7BHBAO3774T Motor - NEMA Premium
Part Number: 7BHBAO3774T
Quick Summary
7BHBAO3774T motor provides reliable cooling-duty power for heavy industrial fans and drives. Engineers upgrading legacy systems often struggle with voltage compatibility, mounting, and efficiency, leading to costly rework and downtime. This ABB Baldor-Reliance model carries Premium Efficiency (NEMA Premium), CSA, CUR USEEV, and WEEE certifications, helping meet U.S. and global requirements while reducing energy costs. With dual voltage 230/460 V, TEAO enclosure, and a 215T frame, installation is streamlined and cross-compatible across new and retrofit projects. Built for continuous duty in demanding environments, it delivers solid performance at 1760 rpm while maintaining reliability and a lower total cost of ownership for OEMs and maintenance teams.
Product Information
Extended Description
7BHBAO3774T ABB: Critical Cooling 10 Hp 230 V (HBAO3774T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10 AOHP,1755RPM,3PH,60HZ,215T,0748M
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
HBAO3774T
Certification Agency
CSA | CURUSEEV | NEMA_PREMIUM | WEEE
Country of Origin
United States (US)
Customs Tariff Number
8414596590
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
HBAO3774T
Gross Volume
9144.346 inÂł
Gross Weight
231 lb
Insulation Class
H
Invoice Description
10 AOHP,1755RPM,3PH,60HZ,215T,0748M,TEAO
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Critical Cooling, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEAO Enclosure, 230/460 V, 60 Hz (HBAO3774T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
82 %
Product Name
Critical Cooling
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
231 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
92.40 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B07D097X776G2
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, TEAO, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Dual voltage 230/460 V simplifies sourcing and retrofit projects, reducing wiring complexity and inventory needs for spare motors; ideal for upgrade cycles in manufacturing lines and conveyors. Feature → Business Impact → Application: Premium efficiency at 92.4% cuts energy bills and lowers operating costs, delivering measurable ROI in continuous-duty cooling applications and OEM equipment. Feature → Business Impact → Application: TEAO enclosure provides a compact footprint with straightforward mounting and improved cooling, minimizing enclosure requirements in space-constrained installations. Feature → Business Impact → Application: 215T frame with 1.38 in shaft and 231 lb weight enables straightforward mounting, compatible with standard Baldor-Reliance bases and existing installations. Feature → Business Impact → Application: Direct-on-line starting and 3-phase, 60 Hz operation simplify control schemes, reducing installation time and wear on starter equipment. Feature → Business Impact → Application: Stocked at multiple warehouses with 0-day lead time, enabling rapid deployments for OEMs and maintenance teams while improving total cost of ownership in cross-border supply chains.
Get a Quick Quote for a ABB 7BHBAO3774T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BHBAO3774T?
Enquire Now
FAQs
Yes. The 7BHBAO3774T is a dual-voltage, 3-phase motor rated for 230 V and 460 V operation at 60 Hz. It supports direct-on-line starting and is designed to simplify wiring and starter selection in retrofit projects or new installations.
The motor uses a foot-mounted base with a 215T frame, horizontal mounting orientation, and F1 mounting position. Net dimensions approximate 28.625 in length, 18.125 in width, and 17.625 in height, with a net weight around 231 lb, facilitating straightforward installation on standard bases.
The motor carries Premium Efficiency (NEMA Premium), CSA, CUR USEEV, and WEEE certifications, supporting regulatory compliance in North America and select international markets. Its NEMA Design A and TEAO enclosure further align with common industrial energy and protection standards.
With a 10 HP continuous-duty rating, 4 poles, 1760 r/min nominal speed, and a service factor of 1.15, the motor delivers robust torque and reliable operation under demanding loads. Energy efficiency of 92.4% reduces running costs, while Direct On Line starting minimizes control hardware needs.
Expectation includes reduced energy consumption, improved uptime, and lower total cost of ownership due to premium efficiency and durable bearings (6307, ball). The motor is stocked with 0-day lead time in multiple warehouses, aiding faster project delivery and faster maintenance cycles.
