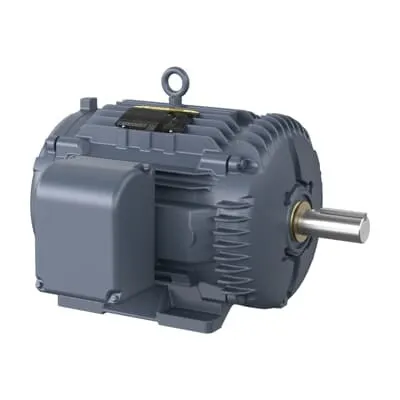

ABB 7BHBAO4103T Critical Cooling - IE3 Premium Efficiency
Part Number: 7BHBAO4103T
Quick Summary
ABB 7BHBAO4103T is a high-efficiency 25 HP motor designed for critical cooling applications in industrial drives. When uptime matters, engineers wrestle with overheating risk, variable load, and slow procurement. This model combines IE3 Premium Efficiency, TEAO enclosure, and a NEMA design framework to deliver reliable 3-phase operation at 60 Hz with dual voltage 230/460 V. Its compact 284T frame and foot-mounted base support straightforward installation and seamless integration with existing cooling systems, reducing energy costs and maintenance complexity for plant-wide automation.
Product Information
Extended Description
7BHBAO4103T ABB: Critical Cooling 25 Hp 230 V (HBAO4103T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25 AOHP,1775RPM,3PH,60HZ,286T,1054M
Ambient Temperature
50 °C
Bearing
6311, Sealed Bearing
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
HBAO4103T
Certification Agency
CURUSEEV | WEEE
Country of Origin
United States (US)
Customs Tariff Number
84145980
Drive End Flange Type
Standard
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
HBAO4103T
Gross Volume
14448.906 in³
Gross Weight
437 lb
Insulation Class
H
Invoice Description
25 AOHP,1775RPM,3PH,60HZ,286T,1054M,TEAO
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Critical Cooling, 25 HP, 1800 RPM, Frame Size 284T, Standard Mounting, 3 Phase, 230/460 V, 60 Hz (HBAO4103T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
81 %
Product Name
Critical Cooling
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
437 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
62 A | 31 A
Rated Efficiency
93.60 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B10T006Z651G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
25 HP, 1800 RPM, Frame Size 284T, Standard, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The IE3 Premium Efficiency rating reduces operating costs over the motor’s life, delivering measurable energy savings in continuous cooling duties and contributing to lower total cost of ownership in automated production lines. Application: Industrial cooling loops and process cooling systems that run 24/7 benefit from lower energy consumption and predictable performance. Feature → Business Impact → Application: TEAO enclosure and 284T frame simplify installation and maintenance, enabling faster retrofits or new installs in space-constrained machinery bays. Application: OEM drives and packaging lines needing compact footprints and straightforward serviceability. Feature → Business Impact → Application: Dual voltage 230/460 V and 60 Hz capability provide flexible deployment across locations with varying supply conditions, reducing site-specific wiring changes and expediting commissioning. Application: Global manufacturing facilities integrating with diverse electrical infrastructure. Feature → Business Impact → Application: Direct-on-line starting minimizes control hardware and soft-start requirements, lowering upfront costs and simplifying integration with existing starter cabinets. Application: Plants aiming for rapid startup and minimal downtime during deployment. Feature → Business Impact → Application: Stock availability and zero-day lead time ensure rapid replacement and maintenance, reducing downtime in critical cooling applications. Application: Continuous process cooling where unplanned outages are costly. Feature → Business Impact → Application: NEMA design code A and robust 284T frame support continuous-duty operation with reliable bearing life and dependable performance. Application: Heavy-industrial cooling systems in process industries seeking long-term reliability.
