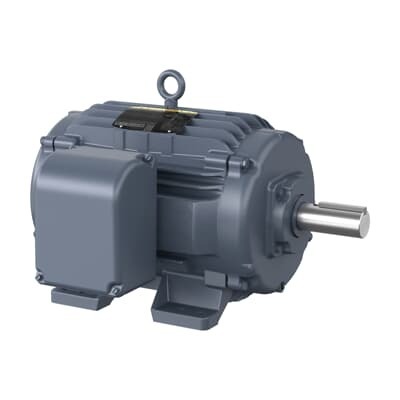

ABB 7BHBAO4118T Motor - 25 HP, 230V IE3
Part Number: 7BHBAO4118T
Quick Summary
The ABB 7BHBAO4118T motor delivers 25 HP performance for critical cooling systems in industrial equipment. This design helps minimize downtime and energy waste in demanding environments. It aligns with IE3 premium efficiency, NEMA design considerations, and CURUSEEV/WEEE compliance for global deployments. The motor supports TEAO enclosure, a 284T frame, and foot-mounted installation for straightforward integration. With dual voltage 230/460 V and 60 Hz operation, it fits a wide range of plant power rails. A robust 2-pole, 3-phase design supports direct-on-line starting and continuous service in continuous-duty applications. We also note a 25 AOHP rating and a 3600 r/min synchronous speed, which informs gear coupling and drives selection. Overall, this ABB motor offers reliable cooling performance, quick install, and long-term cost savings through efficient operation.
Product Information
Extended Description
7BHBAO4118T ABB: Critical Cooling 25 Hp 230 V (HBAO4118T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25 AOHP,3520RPM,3PH,60HZ,284T,0944M
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
HBAO4118T
Certification Agency
CURUSEEV | WEEE
Country of Origin
United States (US)
Customs Tariff Number
84145980
Drive End Flange Type
Standard
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
HBAO4118T
Gross Volume
14448.906 inÂł
Gross Weight
265 lb
Insulation Class
H
Invoice Description
25 AOHP,3520RPM,3PH,60HZ,284T,0944M,TEAO
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Critical Cooling, 25 HP, 3600 RPM, Frame Size 284T, Standard Mounting, 3 Phase, 230/460 V, 60 Hz (HBAO4118T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
88 %
Product Name
Critical Cooling
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
265 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
58 A | 29 A
Rated Efficiency
91.70 %
Rated Speed
3520 r/min
Replaced Product ID (OLD)
7B09T114T577G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
25 HP, 3600 RPM, Frame Size 284T, Standard, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: Critical Cooling 25 HP motor with 3600 r/min synchronous speed → Business Impact: Delivers high cooling capacity with stable load response, reducing process fluctuations and downtime in thermal-intensive applications. Application: Industrial chillers and process cooling units. Feature: Dual voltage 230/460 V at 60 Hz → Business Impact: Flexible power integration minimizes spare parts and simplifies site commissioning, lowering total cost of ownership. Application: Plants with mixed power rails and retrofit projects. Feature: TEAO enclosure on a 284T frame, foot-mounted → Business Impact: Easy installation and reliable protection in ambient industrial environments, accelerating commissioning and service access. Application: New installations and equipment upgrades where footprint matters. Feature: IE3 premium efficiency and service factor 1.15 → Business Impact: Energy savings over the motor’s life, reducing operating costs and supporting sustainability goals. Application: Continuous-duty cooling loops and HVAC systems. Feature: 3-phase, 2-pole, DOL starting → Business Impact: Simple integration with standard drives and minimal soft-start requirements, lowering startup costs and downtime. Application: Pumps, blowers, and compressors in manufacturing lines. Feature: 284T frame, 1.88 in shaft, 0.88 power factor equivalent → Business Impact: Compatibility with common couplings and improved mechanical matching reduces maintenance and misalignment risk. Application: Replacements and retrofit projects in mid-size machinery. Feature: Stocked across multiple warehouses and 0-day lead time → Business Impact: Faster delivery and reduced downtime for urgent maintenance and spare parts strategies. Application: Global operations with just-in-time maintenance requirements.
