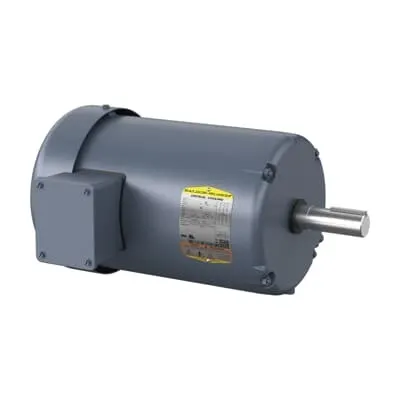

ABB 7BHBEM3614T Critical Cooling - NEMA Premium
Part Number: 7BHBEM3614T
Quick Summary
ABB 7BHBEM3614T is a 2 HP motor for critical cooling in industrial equipment. It helps engineers reduce downtime by delivering reliable torque and consistent cooling under demanding conditions. It carries CURUSEEV, NEMA Premium efficiency, and WEEE compliance, aligning with energy, regulatory, and sustainability goals. Designed for rugged environments, the 184T frame, 6-pole configuration, and TEFC enclosure ensure dependable operation and straightforward installation. With 230/460 V and 60 Hz operation, the unit supports fast procurement and predictable performance across global facilities. This makes it a pragmatic choice for modular cooling systems and legacy plant upgrades.
Product Information
Extended Description
7BHBEM3614T ABB: Critical Cooling 2 Hp 230 V (HBEM3614T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
44M 6P TEFC HOR 184T
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
HBEM3614T
Certification Agency
CURUSEEV | NEMA_PREMIUM | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
HBEM3614T
Gross Volume
7192.91 in³
Gross Weight
100 lb
Insulation Class
H
Invoice Description
44M 6P TEFC HOR 184T
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
Critical Cooling, 2 HP, 1200 RPM, Frame Size 184T, Standard Mounting, 3 Phase, 230/460 V, 60 Hz (HBEM3614T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
60 %
Product Name
Critical Cooling
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
100 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7 A | 3.5 A
Rated Efficiency
88.50 %
Rated Speed
1175 r/min
Replaced Product ID (OLD)
7B36T429S917G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
2 HP, 1200 RPM, Frame Size 184T, Standard, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The motor delivers IE3/NEMA Premium efficiency, reducing energy costs across continuous cooling duties and improving regulatory compliance in energy-intensive plants. This translates to measurable operating expense reductions and a smaller environmental footprint in industrial cooling loops. Application: suitable for fans, heat exchangers, and process cooling equipment where uptime and energy performance drive total cost of ownership reductions. Feature → Business Impact → Application: 230/460 V, 60 Hz, 3-phase supply enables compatibility with standard control panels and VFDs, simplifying integration and reducing wiring complexity. Application: broad applicability in manufacturing lines and automated cooling systems. Feature → Business Impact → Application: TEFC enclosure and 184T foot-mounted frame provide robust protection and easy installation, enabling quick commissioning and minimizing maintenance costs. Application: reliable performance in harsh environments with straightforward retrofits. Feature → Business Impact → Application: 6-pole, 1175 r/min rated speed with 1200 r/min synchronous speed delivers stable process cooling and predictable drive sync with existing equipment. Application: belt-driven or direct-driven cooling assemblies. Feature → Business Impact → Application: stocked in multiple warehouses with 0 day lead time, ensuring rapid fulfillment and reduced downtime for critical cooling projects. Application: plant upgrades and emergency replacements in US and international facilities.
Get a Quick Quote for a ABB 7BHBEM3614T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BHBEM3614T?
Enquire Now
FAQs
Yes. The 7BHBEM3614T is a 3-phase, 230/460 V motor with a 184T frame and foot-mounted, horizontal mounting. It supports direct on line starting and is compatible with standard VFDs for speed control, provided proper wiring and enclosure cooling are observed. Its TEFC enclosure protects internal windings in typical industrial cooling environments, simplifying retrofits and upgrades.
The motor delivers 2 HP output with a rated speed of 1175 r/min and a synchronous speed of 1200 r/min. It operates at 60 Hz and is rated for 230 V or 460 V in a 3-phase configuration. Rated current is 7 A or 3.5 A depending on voltage, with IE3 (NEMA Premium) efficiency and a 6-pole design suitable for continuous duty in cooling applications.
Yes. With an ambient temperature rating of 40 °C and a TEFC enclosure, the motor is designed for continuous duty in demanding environments. The 184T frame and foot-mounted configuration simplify installation on cooling fans, heat exchangers, and process cooling equipment, while the 60 Hz supply aligns with common industrial power systems.
The 7BHBEM3614T carries CURUSEEV and WEEE certifications and is rated for NEMA Premium (IE3) efficiency. These certifications support energy compliance and responsible disposal requirements in industrial facilities, reinforcing sustainability goals alongside regulatory adherence.
Expect lower maintenance due to a sealed bearing design (6206) and a robust TEFC enclosure, contributing to longer bearing life. The motor’s high efficiency reduces operating costs, while direct on line starting and standard mounting simplify installation. Warranty terms indicate the product should be returned if not under warranty, ensuring defined post-purchase support and recourse.
