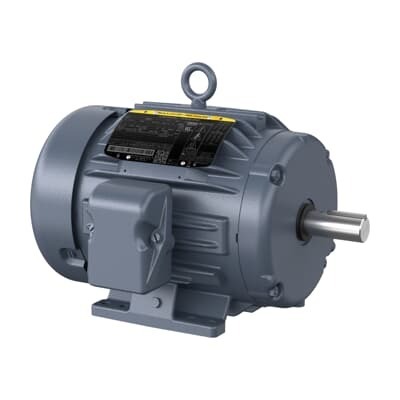

ABB 7BHBEM3664T Motors & Drives - IE3 Premium Efficiency
Part Number: 7BHBEM3664T
Quick Summary
ABB 7BHBEM3664T is a 2 HP motor for critical cooling applications in industrial machinery and process plants. When uptime and reliability matter, users face downtime and costly maintenance; this motor is engineered to withstand demanding loads with a TEFC enclosure and a robust 184T frame. It carries NEMA Premium IE3 efficiency, CURUSEEV certification, and WEEE compliance to meet sustainability and regulatory goals. Built for easy integration in 230/460 V, 60 Hz systems, it supports horizontal foot-mounted installation and direct-on-line starting. OEMs and maintenance teams benefit from consistent performance, lower energy costs, and straightforward service within existing Baldor-Reliance powered lines.
Product Information
Extended Description
7BHBEM3664T ABB: Critical Cooling 2 Hp 230 V (HBEM3664T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
42M 6P TEFC HOR 184T
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
HBEM3664T
Certification Agency
CURUSEEV | NEMA_PREMIUM | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
HBEM3664T
Gross Volume
5274.135 in³
Gross Weight
113 lb
Insulation Class
H
Invoice Description
42M 6P TEFC HOR 184T
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
Critical Cooling, 2 HP, 1200 RPM, Frame Size 184T, Standard Mounting, 3 Phase, 230/460 V, 60 Hz (HBEM3664T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
68 %
Product Name
Critical Cooling
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
113 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.3 A | 3.15 A
Rated Efficiency
88.50 %
Rated Speed
1165 r/min
Replaced Product ID (OLD)
7B06L568W970G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
2 HP, 1200 RPM, Frame Size 184T, Standard, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
IE3 premium efficiency is more than a specification; it translates to meaningful energy savings in continuous cooling duty, reducing operating costs across long production runs. This 88.50% rated efficiency paired with a 68% power factor minimizes electrical waste and heat generation, improving overall plant reliability. The TEFC enclosure and 184T frame deliver rugged protection in harsh environments, enabling longer service intervals and fewer unplanned shutdowns in HVAC and process cooling applications. Direct-on-line starting reduces control-system complexity, enabling faster energization and simpler panel design, which lowers installation costs and downtime during commissioning. Sealed 6206 bearings and a 40 °C ambient rating support extended bearing life and lower maintenance costs, particularly in high-vibration or dusty factory floors. A foot-mounted, horizontal F1 orientation with a 1.13 in shaft diameter makes retrofit and new-install projects straightforward, supporting quick alignment with existing belts, pulleys, and couplings. With 3-phase operation at 230/460 V and 60 Hz, this motor suits a wide range of equipment—from cooling fans to refrigerant circulation pumps—while staying compatible with standard Baldor-Reliance drives and controls.
Get a Quick Quote for a ABB 7BHBEM3664T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BHBEM3664T?
Enquire Now
FAQs
Yes. It is a 3-phase motor rated for 230/460 V at 60 Hz, delivering 2 HP with a 184T frame. It supports direct-on-line starting and is suitable for standard industrial power distributions.
The motor features NEMA Premium IE3 efficiency, along with CURUSEEV and WEEE certifications, aligning with regulatory requirements and sustainability goals for industrial equipment.
It is designed for foot-mounted, horizontal orientation with mounting position F1. The shaft diameter is 1.13 inches, and it integrates smoothly with standard belts, pulleys, or couplings used in Baldor-Reliance installations.
The motor provides 2 HP output, rated speed 1165 r/min, rated current 6.3 A (line) / 3.15 A (load), and a power factor of 68%. It runs at 60 Hz with a 230/460 V supply and uses a Direct-on-Line starting method for immediate engagement.
The product is actively stocked at multiple warehouses (US and China), with a lead time of 0 day. Warranty terms indicate that warranty returns apply for products under warranty and must be returned according to policy, ensuring quick replacements if issues arise.
