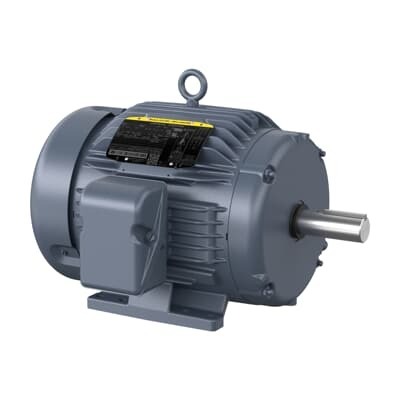

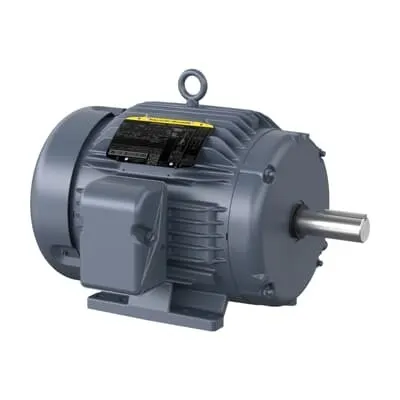

ABB HBEM3774T Critical Cooling Motor - 10 HP 230/460V IE3
Part Number: 7BHBEM3774T
Quick Summary
ABB HBEM3774T Critical Cooling motor delivers 10 HP of reliable power for industrial cooling systems and process equipment. Engineers often face airflow variability, energy waste, and downtime when matching motors to demanding cooling loads. This model aligns with IE3 Premium Efficiency and NEMA Premium standards and carries CURUSEEV and WEEE certifications for global compliance. With a 215T TEFC frame, 3-phase operation, and dual voltage options (230/460 V), it supports easy integration into standard foot-mounted installations, reducing installation time and lifecycle costs while improving system uptime. This combination supports scalable cooling solutions across manufacturing lines, warehouses, and data center environments where uptime and energy cost control are critical.
Product Information
Extended Description
7BHBEM3774T ABB: Critical Cooling 10 Hp 230 V (HBEM3774T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
48M 4P TEFC HOR 215T
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
HBEM3774T
Certification Agency
CURUSEEV | NEMA_PREMIUM | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
HBEM3774T
Gross Volume
9144.346 inÂł
Gross Weight
231 lb
Insulation Class
H
Invoice Description
48M 4P TEFC HOR 215T
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Critical Cooling, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, 230/460 V, 60 Hz (HBEM3774T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
83 %
Product Name
Critical Cooling
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
231 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
24.6 A | 12.3 A
Rated Efficiency
91.70 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7B07D743T511G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: IE3 Premium Efficiency and 10 HP output. Business Impact: Tangible energy savings and reduced heat generation for continuous cooling duty. Application: Ideal for industrial cooling systems, process equipment, and HVAC loops in manufacturing. Feature: TEFC enclosure with 215T frame and foot-mounted base. Business Impact: Robust protection against dust, moisture, and vibration, extending maintenance intervals. Application: Suitable for harsh factory floors and outdoor-rated installations. Feature: Dual voltage 230/460 V and direct-on-line starting. Business Impact: Simplified replacement in global sites, reduced wiring complexity, and fast startups. Application: Global facilities and retrofit projects. Feature: 4-pole design, 1.15 service factor, and 1.38 in shaft diameter. Business Impact: Higher torque reserve and reliable fan performance under varying load. Application: Continuous cooling duties with stable airflow and minimal vibration. Feature: Foot-mounted horizontal orientation on 215T frame with 3-phase 60 Hz operation. Business Impact: Easy installation, compatibility with standard base plates, and reduced commissioning time. Application: Manufacturing lines, racks, and plant-wide cooling loops.
