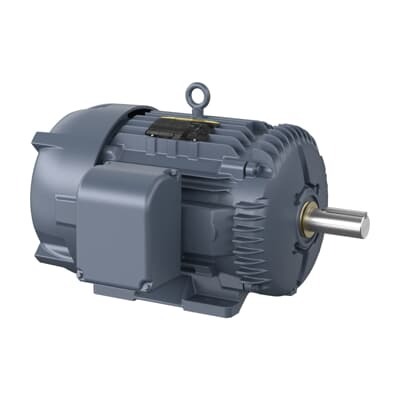

ABB HBEM4100T Motor for Critical Cooling - IE3
Part Number: 7BHBEM4100T
Quick Summary
ABB HBEM4100T Motor for Critical Cooling powers demanding 15 HP cooling circuits in industrial equipment, delivering reliable 230 V three-phase performance. This solution targets downtime and heat-related failures by providing a rugged TEFC enclosure and a robust 60 Hz design. Certifications such as CURUSEEV, NEMA Premium, and WEEE signal strong compliance across regions while supporting energy-efficient operations. For procurement teams and maintenance staff, stock availability and standard mounting simplify sourcing and installation, driving faster project timelines. Ideal for process cooling, HVAC, and heavy machinery where consistent torque and startup reliability matter.
Product Information
Extended Description
7BHBEM4100T ABB: Critical Cooling 15 Hp 230 V (HBEM4100T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
46M 6P TEFC HOR 284T
Ambient Temperature
40 °C
Bearing
6311, Sealed Bearing
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
HBEM4100T
Certification Agency
CURUSEEV | NEMA_PREMIUM | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
HBEM4100T
Gross Volume
14448.906 in³
Gross Weight
391 lb
Insulation Class
H
Invoice Description
46M 6P TEFC HOR 284T
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
Critical Cooling, 15 HP, 1200 RPM, Frame Size 284T, Standard Mounting, 3 Phase, 230/460 V, 60 Hz (HBEM4100T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
73 %
Product Name
Critical Cooling
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
391 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
42 A | 21 A
Rated Efficiency
91.70 %
Rated Speed
1175 r/min
Replaced Product ID (OLD)
7B10T007Y561G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
15 HP, 1200 RPM, Frame Size 284T, Standard, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 15 HP at 230 V (60 Hz) three-phase power delivers consistent torque for continuous cooling loads, reducing energy consumption through IE3 premium efficiency and a well-matched 284T frame. This translates to measurable cost savings and improved equipment reliability for flood cooling, process chillers, and industrial ventilation. Feature → TEFC enclosure with rugged Iron frame provides dust and moisture resistance, extending motor life in harsh plant environments and lowering maintenance costs for manufacturing lines. Feature → Direct-on-line starting simplifies electrical connectivity, lowers starter hardware needs, and reduces startup delays in air handling units and process lines. Feature → Stocked at multiple warehouses with 0-day lead time, enabling rapid replacements and minimizing downtime for critical cooling systems. Feature → NEMA design A with 1.15 service factor and rated speed 1175 r/min ensures predictable performance in demanding environments, supporting precise process control and energy efficiency. Feature → 230/460 V dual voltage capability offers flexible integration with existing electrical infrastructure, reducing retrofit costs for aging plants. Industry context: In modern plants, 15 HP motors with IE3 efficiency support compliance and sustainability goals while delivering reliable uptime for critical cooling tasks.
