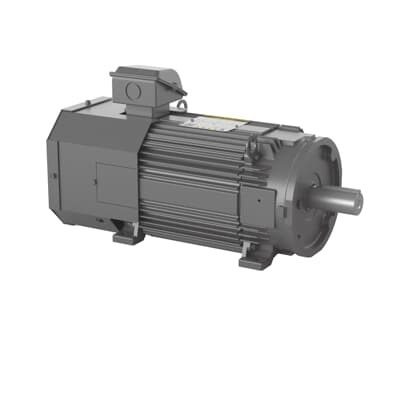

ABB 7BIDBRPM18204C AC VS Laminated Frame - 20HP
Part Number: 7BIDBRPM18204C
Quick Summary
7BIDBRPM18204C is an AC motor assembly with laminated frame designed for high-efficiency belt and pulley drives in industrial equipment. This RPMAC 20 HP, 460 V, 3-phase motor is built to withstand demanding production environments while delivering consistent torque and speed control. Engineers often confront reliability and maintenance challenges when integrating new motors into existing automation lines, especially under continuous operation and variable loads. This ABB unit aligns with NEMA standards and carries CCSA US certification, while its TEBC enclosure and H-class insulation provide rugged performance. Designed for foot-mounted installation and straightforward wiring, it supports fast commissioning and a lower total cost of ownership in material handling and packaging applications.
Product Information
Extended Description
7BIDBRPM18204C ABB: AC VS Laminated Frame - RPMAC 20 Hp 460 V (IDBRPM18204C)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1755RPM,3PH,60HZ,1852C,TEBC,FT
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
45BC02JPP30A, Ball
Bearing NDE
35BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDBRPM18204C
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
1852
Frequency (f)
60 Hz
Global Commercial Alias
IDBRPM18204C
Gross Volume
34034 inÂł
Gross Weight
166.015 kg
Horsepower Rating UL/CSA
20.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
20HP,1755RPM,3PH,60HZ,1852C,TEBC,FT/250
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 20 HP, 1800/3600 RPM, Frame Size Fl1852C, C-Face Mounting, 3 Phase, TEBC Enclosure, 460 V, (IDBRPM182
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL1852C
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
2
Order Multiple
1 piece
Output Power
20 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
34 in
Product Net Height
38.5 in
Product Net Weight
166.015 kg
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
27 A
Rated Speed
1755 r/min | 3505 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Short Description
20 HP, 1800/3600 RPM, Frame Size Fl1852C, C-Face, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Laminated frame design → Reduces eddy current losses and improves thermal management, boosting overall efficiency and reducing energy costs in high-load conveyors and pumps. This translates to tangible savings on operating expenses and longer motor life when deployed in continuous-duty lines. 460 V three-phase rating → Seamless integration with standard plant power, simplifying electrical design and minimizing voltage drop concerns on long runs or retrofit projects. Compatible with ABB drive systems for precise speed control and smooth startup in 60 Hz environments. Frame FL1852C with TEBC enclosure → Facilitates easy installation and robust protection against dust and moisture, supporting reliable operation in manufacturing floors and washdown zones. Foot-mounted, C-Face drive end flange → Simplifies mounting and alignment with existing gearboxes or belt drives, reducing setup time and vibration-induced wear. 1.63 in shaft diameter and 27 A rated current → Provides clear sizing for coupling and power transmission, enabling accurate motor-to-load matching and reduced downtime. Synchronous speed of 1800 r/min and rated speed of 1755 r/min | 3505 r/min → Delivers predictable performance for multi-speed applications, aiding in process optimization and energy efficiency. Insulation Class H and 2-pole design → Enhances durability in thermal cycling and supports longer service intervals in hot manufacturing environments. Stocked availability and 0-day lead time across multiple warehouses → Minimizes downtime for urgent replacements or line changes, improving production resilience. Overall, the unit’s rugged construction and standard-compliant features support a lower total cost of ownership while delivering consistent mechanical performance across packaging, conveying, and pumping applications.
Get a Quick Quote for a ABB 7BIDBRPM18204C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BIDBRPM18204C?
Enquire Now
FAQs
Yes. The motor is rated for 460 V, 60 Hz, three-phase operation and is designed for seamless integration with standard ABB drive systems. With a 20 HP output and a 27 A rated current, it accommodates typical load profiles in conveyors, pumps, and fans. The TEBC enclosure also supports reliable operation in demanding environments.
The motor uses a foot-mounted configuration with a C-Face drive end flange, and it employs frame FL1852C laminated construction. This combination enables straightforward installation beside existing gearboxes or pulleys, simplifies alignment, and reduces mechanical integration time on new or retrofitted lines.
It adheres to NEMA standards and carries CCSA US certification, providing regulatory compliance and reliability in industrial settings. The TEBC enclosure plus H-class insulation further supports protection against harsh operational conditions, aligning with safety and performance requirements for continuous-duty applications.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses (e.g., US and international sites). This broad availability minimizes downtime for urgent replacements and supports rapid deployment in production environments.
With laminated frame efficiency, robust TEBC protection, and a reliable 3-phase 460 V design, the RPMAC delivers lower energy losses, reduced maintenance cycles due to durable H-class insulation, and faster installation. Its compatibility with standard mounting and drives accelerates commissioning, lowering total cost of ownership in conveyors and processing lines.
