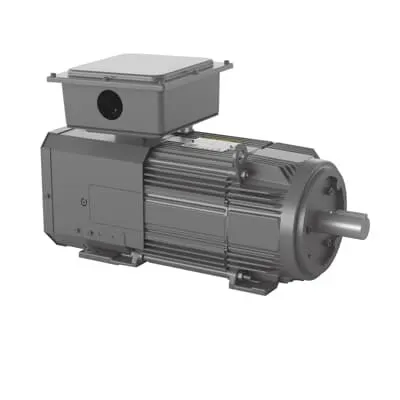

ABB IDBRPM21254C Motor - 25HP 460V TEBC
Part Number: 7BIDBRPM21254C
Quick Summary
ABB IDBRPM21254C motor is a 25 HP, 460 V, three-phase AC motor designed for continuous-duty drives in manufacturing. If uptime and maintenance costs are top of mind, this unit's rugged laminated frame and TEBC enclosure help reduce downtime. The unit is UL/CSA rated and carries CCSA US certification, aligned with NEMA standards for safe, interoperable electrical installations, while offering consistent performance at 60 Hz. With stock readily available across multiple warehouses, fast lead times, and a straightforward warranty policy, this motor supports rapid project ramp-ups and reliable long-term operation for OEMs and integrators. Its proven compatibility with ABB Baldor-Reliance line simplifies procurement and spare-part planning.
Product Information
Extended Description
7BIDBRPM21254C ABB: AC VS Laminated Frame - RPMAC 25 Hp 460 V (IDBRPM21254C)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1750,460V,FL2162,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
50BC03JPP30A, Ball
Bearing NDE
45BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDBRPM21254C
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
2162
Frequency (f)
60 Hz
Global Commercial Alias
IDBRPM21254C
Gross Volume
0 in³
Gross Weight
131.542 kg
Horsepower Rating UL/CSA
25.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
25HP,1750,460V,FL2162,TEBC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 25 HP, 1800/3600 RPM, Frame Size Fl2162Cz, C-Face Mounting, 3 Phase, TEBC Enclosure, 460 V, (IDBRPM21
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2162CZ
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
2
Order Multiple
1 piece
Output Power
25 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
131.542 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
34 A
Rated Speed
1770 r/min | 3535 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Shaft Grounding
Shaft Grounding
Short Description
25 HP, 1800/3600 RPM, Frame Size Fl2162Cz, C-Face, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature: Laminated frame construction and TEBC enclosure deliver robust mechanical integrity and environmental protection. Business impact: This combination lowers thermal stress and improves overload resilience, reducing unplanned outages and maintenance costs. Application: Ideal for continuous-duty conveyors and material-handling systems in manufacturing, food processing, and packaging lines that demand steady, reliable torque at 60 Hz. Feature: 460 V three-phase operation at 60 Hz and 25 HP rating. Business impact: Enables high torque with efficient power usage, supporting energy-conscious drive systems and lower operating costs per load cycle. Application: Suitable for pumps, fans, and grinders in facilities seeking standard 460 V motor backbones in revamped plants or OEM equipment. Feature: Foot-mounted base with C-face drive end flange (FL2162CZ) and shaft 1.63 in. Business impact: Simplifies installation and retrofit, reducing mounting time and alignment risk. Application: Works well in existing footprint constraints on production lines and gear-driven applications requiring easy belt/pulley alignment. Feature: Insulation class H and UL/CSA rating with NEMA compliance; dual-speed potential 1770/3535 r/min and synchronous speed 1800 r/min. Business impact: Provides resilience to heat, expanded speed options, and safer operation under demanding loads. Application: Critical for conveyors, pumps, and fans with variable torque and startup requirements. Feature: Ready-to-ship stock location US and China with 0-day lead time; warranty policy requiring return of warranty items. Business impact: Accelerates project timelines, reduces stockouts, and clarifies post-sale support. Application: Ideal for OEMs, system integrators, and distributors needing fast procurement for critical equipment.
