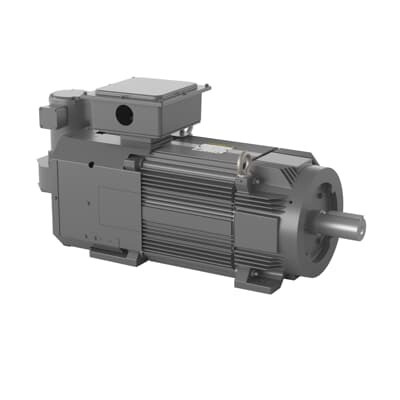

ABB IDBRPM281254 AC VS Laminated Frame Motor - TEBC
Part Number: 7BIDBRPM281254
Quick Summary
ABB IDBRPM281254 AC VS Laminated Frame Motor is a 125 HP, 460 V three-phase drive designed for heavy industrial duty, including conveyors, pumps, and processing lines. The laminated frame and TEBC enclosure deliver rugged protection in demanding environments while supporting reliable continuous operation. This model features a 1800/3600 rpm capability, a 156 A rated current, and a 60 Hz electrical profile for consistent, predictable performance. Key certifications include UR recognized components and CCSA US compliance, with alignment to NEMA standards for compatibility with standard controls and safety practices. The motor is stocked across multiple warehouses with zero-day lead time, simplifying procurement and project ramp-ups. By leveraging Baldor-Reliance integration, warranty support, and straightforward installation, it offers strong total cost of ownership advantages for industrial facilities.
Product Information
Extended Description
7BIDBRPM281254 ABB: AC VS Laminated Frame - RPMAC 125 Hp 460 V (IDBRPM281254)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
125HP,1750,460V,FL2898,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
75BC02J30X, Ball
Bearing NDE
55BC02J30X
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDBRPM281254
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015381
Drive End Flange Type
Standard
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
2898
Frequency (f)
60 Hz
Global Commercial Alias
IDBRPM281254
Gross Volume
0 in³
Gross Weight
428.645 kg
Horsepower Rating UL/CSA
125.000 Hp
Insulation Class
H
Invoice Description
125HP,1750,460V,FL2898,TEBC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 125 HP, 1800/3600 RPM, Frame Size Fl2898, Standard Mounting, 3 Phase, TEBC Enclosure, 460 V, 60 Hz (I
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2898
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
125 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
428.645 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
156 A
Rated Speed
1780 r/min | 3555 r/min
Replaced Product ID (OLD)
7BIDBRPM321254
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
2.62 in
Shaft Grounding
Shaft Grounding
Short Description
125 HP, 1800/3600 RPM, Frame Size Fl2898, Standard, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
460 V
The laminated frame and TEBC enclosure deliver improved heat dissipation and rugged protection in harsh environments, reducing the risk of thermal overload and extending service intervals. This translates to fewer unexpected outages and faster maintenance windows, which is critical for continuous-operation sectors like packaging lines and food processing. The 125 HP, 460 V, 3-phase 60 Hz configuration provides reliable torque and straightforward integration with existing VFD controls, enabling smoother process control and energy efficiency during peak loads in water treatment or chemical processing. Dual-speed capability (1780/3555 r/min) offers operational flexibility to optimize speed-torque curves for extruders, fans, and conveyors, helping reduce cycle times and energy consumption. Foot-mounted mounting, FL2898 frame, and a 2.62 in shaft diameter simplify installation and spare-part compatibility with standard Baldor-Reliance components, lowering total installation costs and downtime. Robust bearings (75BC02J30X) and shaft grounding further minimize vibration-induced wear and maintenance costs in high-load applications, while NEMA-aligned design and UR/CCSA US compliance streamline audits and safety verification. Stocked availability across multiple warehouses plus 0-day lead time supports fast project ramp-ups and just-in-time procurement for OEMs and integrators.
Get a Quick Quote for a ABB 7BIDBRPM281254
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BIDBRPM281254?
Enquire Now
FAQs
Yes. It uses a TEBC enclosure, frame FL2898, and a foot-mounted base for straightforward installation in existing layouts. It’s designed for 3-phase, 60 Hz systems at 460 V and aligns with typical Baldor-Reliance control schemes, simplifying retrofits and minimizing integration risk. Expect standard mounting patterns and readily available spare parts.
The motor operates as a 3-phase, 60 Hz drive at 460 V, delivering 125 HP with a rated current of 156 A. It supports dual speeds (1780 r/min and 3555 r/min) with a synchronous speed of 1800 r/min, providing torque flexibility for varied load profiles in continuous-duty applications such as conveyors and pumps.
Ideal for conveyors, pumps, mixers, and processing lines in manufacturing and mining, the laminated frame improves cooling and reliability in demanding environments. With TEBC enclosure and NEMA-aligned standards, it suits regulated facilities while maintaining uptime, reducing maintenance cycles, and supporting scalable automation projects across industrial facilities.
The IDBRPM281254 carries UR recognition and CCSA US compliance, aligning with NEMA standards. These marks support safe integration into regulated facilities and simplify supplier qualification. While CE certification isn’t listed in the data, the UL/UR compatibility and robust TEBC enclosure provide dependable protection for harsh environments.
With 0-day lead time and stock in multiple warehouses, project timelines shorten significantly. The rugged bearings (75BC02J30X) and shaft grounding reduce maintenance costs, while compatibility with Baldor-Reliance ecosystems streamlines service and spare parts, delivering faster ROI and lower total cost of ownership for industrial facilities.
