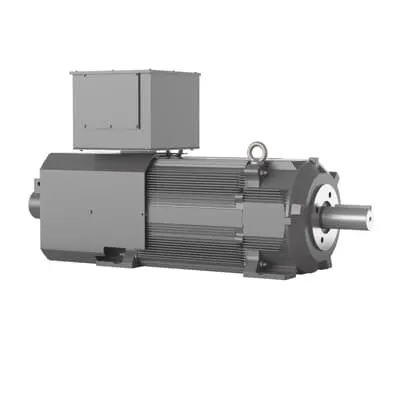

ABB 7BIDBRPM445004 AC VS Laminated Frame - TEBC Enclosure
Part Number: 7BIDBRPM445004
Quick Summary
ABB 7BIDBRPM445004 is a high-performance AC motor with a laminated frame designed for demanding industrial drives. This model delivers robust power in continuous-duty applications while maintaining control precision across variable loads. Engineers benefit from reliable uptime, efficient heat management, and straightforward maintenance in harsh environments. With NEMA-standard design and UL/CSA certification, the motor supports compliant installations and safe operation. The TEBC enclosure adds rugged protection, and the 500 HP rating at 460 V supports scalable drive systems, making it a solid choice for modernization, retrofits, or new line installations that demand immediate availability and predictable performance.
Product Information
Extended Description
7BIDBRPM445004 ABB: AC VS Laminated Frame - RPMAC 500 Hp 460 V (IDBRPM445004)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
500HP,1750,460V,FL4461,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
110BC02J30X, Ball
Bearing NDE
6222/C3VL0241
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDBRPM445004
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015381
Dimension Diagram
617569-001
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
4451
Frequency (f)
90 Hz
Global Commercial Alias
IDBRPM445004
Gross Weight
3978 lb
Horsepower Rating UL/CSA
500.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
500HP,1750,460V,FL4461,TEBC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 500 HP, 1800/3600 RPM, Frame Size Fl4451Z, Standard Mounting, 3 Phase, TEBC Enclosure, 460 V, 90 Hz (
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL4451Z
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
500 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
3978 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
597 A
Rated Speed
1790 r/min | 2500 r/min
Replaced Product ID (OLD)
7BB515366
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
4.25 in
Shaft Grounding
Shaft Grounding
Short Description
500 HP, 1800/3600 RPM, Frame Size Fl4451Z, Standard, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → Business Impact → Application: The laminated frame is engineered for efficient heat dissipation, reducing thermal stress and extending bearing life, which translates into lower maintenance costs and increased line uptime in continuous-process industries. This supports high-throughput applications such as conveyors and mixers where consistency matters. Feature → Business Impact → Application: TEBC enclosure provides rugged environmental protection, enabling safe operation in demanding factory floors and reducing enclosure-related failures during uptime-critical shifts. Feature → Business Impact → Application: 3-phase, 4-pole design delivers stable, controllable speed with a synchronous speed of 1800 r/min, improving process precision and reducing variance in pump or fan drives. Feature → Business Impact → Application: Foot-mounted, horizontal mounting (F3) simplifies installation and retrofit projects, shortening downtime during plant upgrades and enabling quick integration with standard couplings and gearboxes. Feature → Business Impact → Application: Stocked across multiple warehouses with 0 day lead time guarantees faster project delivery, supporting just-in-time manufacturing and rapid ROI realization. Feature → Business Impact → Application: High current rating (597 A) and frame FL4451Z ensure compatibility with large drives and existing motor gear assemblies, reducing custom engineering and procurement risk for heavy machinery upgrades.
Get a Quick Quote for a ABB 7BIDBRPM445004
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BIDBRPM445004?
Enquire Now
FAQs
Yes. This model operates on 3-phase 460 V and is designed for foot-mounted horizontal mounting (F3). Its frame FL4451Z and TEBC enclosure support straightforward retrofits and align with common ISO/NEMA installation practices, minimizing additional adaptation work.
Key specs include 500 HP output, 460 V rating, 3-phase operation, 4 poles, synchronous speed 1800 r/min, and a rated current of 597 A. The shaft diameter is 4.25 in, with a TEBC enclosure and NEMA-compliant design to ensure reliable operation under continuous duty.
Ideal for continuous-duty processes such as heavy conveyors, mixers, pumps, and fans in steel, mining, or chemical processing. The laminated frame provides superior heat dissipation while the TEBC enclosure protects against harsh factory environments, supporting long-term uptime.
The motor is built to NEMA standards and carries UL/CSA certification support (via UR/CCSA). This combination ensures safe operation and compliance for installations in U.S. and international facilities that require recognized safety marks.
With 0-day lead time and stock at multiple warehouses, project timelines are accelerated and inventory risk reduced. The robust enclosure, standard mounting, and compatibility with common gear and drive stacks contribute to lower maintenance costs and faster ROI.
