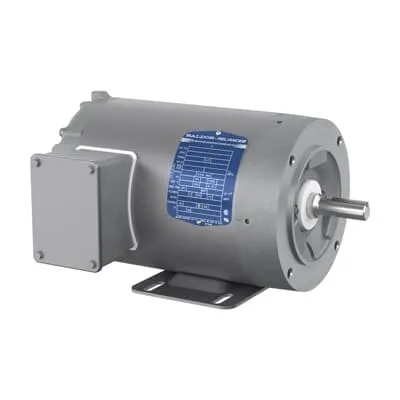

ABB 7BIDCSWDM3538 Motor - Washdown 0.5HP TENV CSA
Part Number: 7BIDCSWDM3538
Quick Summary
The washdown motor 7BIDCSWDM3538 from ABB delivers reliable, hygienic drive for food processing and packaging equipment. In clean-in-place environments, frequent washdowns can challenge performance and uptime; this model is engineered to withstand caustic cleaners, corrosion, and high-pressure cleaning cycles. It carries CSA and UR certifications, a NEMA design B, and a 60 Hz, 208-230/460 V three-phase configuration to meet safety and performance standards. Stocked at multiple warehouses and ready to ship, it combines a paint-free washdown body, stainless-steel frame, and regreasable bearings for long service intervals and lower maintenance costs. For OEMs and integrators, the combination of robust compliance, fast availability, and compatibility with common 56C frame installations translates into faster project rollout and reduced total cost of ownership.
Product Information
Extended Description
7BIDCSWDM3538 ABB: Washdown Motor 0.5 Hp 208 V (IDCSWDM3538)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1775RPM,3PH,60HZ,56C,3514M,TEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDCSWDM3538
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYS638: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
IDCSWDM3538
Gross Volume
2110.969 in³
Gross Weight
31 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
.5HP,1775RPM,3PH,60HZ,56C,3514M,TENV,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
Paint-Free Washdown, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 208-230/460 V, 60 Hz (IDCSWDM3538)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
62 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
31 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.9 A | 1.8 A | 0.9 A
Rated Efficiency
78.20 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B35S638G069G2
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
N
Voltage Rating
208 V | 230 V | 460 V
Paint-Free Washdown construction provides superior corrosion resistance and easy cleaning, reducing maintenance cost and downtime in high-pressure washdown lines. This design is ideal for food and beverage applications where hygiene and cleaning cycles are critical, and it pairs with a stainless steel frame to resist caustic cleaners over the motor’s life. The 56C frame with C-Face drive end flange and foot-mount options enables quick, flexible installation in existing equipment footprints, minimizing retrofit time and mechanical mismatch. A 3-phase, 60 Hz power supply (208-230/460 V) supports common industrial grids, while a Direct On Line (DOL) starting method simplifies control schemes and reduces starter equipment costs. Regreasable bearings and a high-temperature insulation class (H) offer longer service intervals, even in demanding washdown schedules. The motor’s compact footprint, combined with a 16.5 in length and 11.5 in width profile, improves line density in packaging and conveyance systems, while maintaining robust torque at 0.5 HP and 1770 r/min nominal speed. This translates to measurable efficiency gains and lower total cost of ownership for OEM integrators, with compatibility for standard 56C couplings, drive belts, and NEMA B design considerations.
