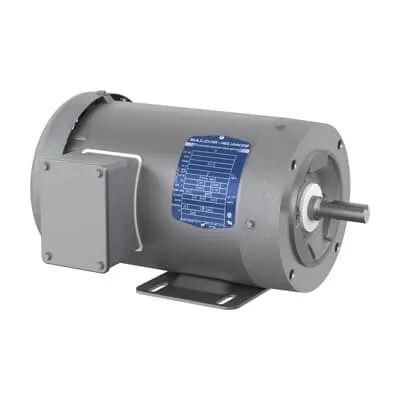

ABB 7BIDCSWDM3554 Washdown Motor - IE3 Premium Efficiency
Part Number: 7BIDCSWDM3554
Quick Summary
7BIDCSWDM3554 is a washdown motor designed to deliver reliable, hygienic performance in harsh, wash-prone environments such as food processing, beverage handling, and pharmaceutical lines. Engineers often struggle with corrosion, residue buildup, and downtime from washdown cycles; this motor's stainless steel frame and TEFC enclosure help withstand high-pressure cleaning and contamination. It carries CSA and UR certifications and aligns with NEMA standards, underscoring compliance, while IE3 premium efficiency helps reduce energy costs on continuous-duty applications. Designed for 3-phase, 60 Hz systems with dual voltage 230/460 V, it integrates easily into standard automation lines, offering compatibility with drives and VFDs to optimize plant performance.
Product Information
Extended Description
7BIDCSWDM3554 ABB: Washdown Motor 1.5 Hp 230 V (IDCSWDM3554)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,56C,3524M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDCSWDM3554
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYS632: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
IDCSWDM3554
Gross Volume
3496.049 inÂł
Gross Weight
51 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
1.5HP,1770RPM,3PH,60HZ,56C,3524M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
4000 r/min
Medium Description
Paint-Free Washdown, 1.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (IDCSWDM3554)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
51 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B35S632L955G1
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
M
Voltage Rating
230 V | 460 V
Feature: Paint-Free Washdown design with a stainless steel frame and TEFC enclosure. Business Impact: Delivers exceptional corrosion resistance and hygienic cleaning, reducing maintenance downtime in high-pressure washdown lines. Application: Ideal for food processing conveyors, dairy pumps, and beverage bottling lines where hygiene and cleanability are critical and downtime is costly. Feature: 1.5 HP rating at 60 Hz with a 1770–1800 RPM range and dual voltage 230/460 V. Business Impact: Enables cross-region installation with a single stock-keeping unit, simplifying procurement and spare parts, while delivering consistent performance across VFDs and drives. Application: General purpose, continuous-duty drive systems in packaging, pumping, and material handling. Feature: IE3 Premium Efficiency and 56C frame with TEFC enclosure. Business Impact: Lower energy consumption over the motor’s life, reducing operating costs and meeting modern efficiency mandates. Application: Long-running production lines in automotive, food, and chemical processing that demand reliable, energy-efficient performance. Feature: NEMA design B, 4-pole, direct-on-line starting, and robust bearings (6205 sealed, 6203 NDE). Business Impact: Predictable torque and smooth operation with simplified control, minimizing startup spikes and maintenance. Application: Conveyor systems, mixer drives, and pumps in hygienic environments. Feature: Mounting versatility with foot-mounted base and C-face flange, horizontal orientation and 0.63 in shaft diameter. Business Impact: Streamlines installation and alignment with existing couplings and belts, reducing commissioning time. Application: Retrofit projects and new builds across manufacturing lines. Feature: Stocked at multiple warehouses with 0-day lead time and clear warranty terms. Business Impact: Shorter downtime, faster quotes, and improved service levels for global operations. Application: Global plants requiring rapid deployment and reliable supply of cleanable motors.
