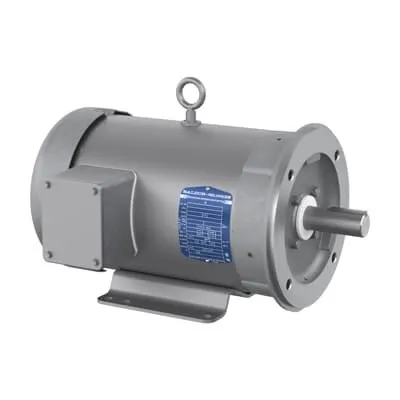

ABB 7BIDCSWDM3615T Washdown Motor - Paint-Free Washdown
Part Number: 7BIDCSWDM3615T
Quick Summary
ABB 7BIDCSWDM3615T is a 5 HP washdown motor designed for hygienic, high-demand applications. It delivers reliable operation in clean-in-place and washdown environments with a paint-free surface and a rugged TEFC enclosure. This model addresses common challenges such as corrosion, downtime, and difficult cleaning by combining a stainless-like frame finish with robust bearings and seals. Certified for CSA | UR and aligned to NEMA B design, it also emphasizes premium efficiency with IE3 rating for cost-effective operation. With a 184TC frame, C-face mounting, and dual-voltage 230/460 V three-phase input, it fits compact equipment while delivering energy savings and long service life for industrial processes.
Product Information
Extended Description
7BIDCSWDM3615T ABB: Washdown Motor 5 Hp 230 V (IDCSWDM3615T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184TC,3646M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDCSWDM3615T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYK201: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
IDCSWDM3615T
Gross Volume
5274.135 in³
Gross Weight
99 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
5HP,1750RPM,3PH,60HZ,184TC,3646M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
Paint-Free Washdown, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (IDCSWDM3615T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
81 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
99 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13 A | 6.5 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The paint-free washdown surface paired with TEFC enclosure minimizes corrosion and cleaning maintenance, reducing downtime and service costs in food and beverage lines and pharmaceutical processing. This translates to higher equipment availability and lower total cost of ownership. Feature → Business Impact → Application: The 5 HP, 1750 rpm performance at 60 Hz delivers consistent torque and drive stability in continuous-duty applications, enabling predictable conveyor and pump operation while meeting regulatory expectations for process reliability. Feature → Business Impact → Application: The stainless steel-like frame and 184TC footprint support quick retrofits and simple integration into existing equipment with C-face mounting, accelerating installation and reducing project lead times for OEMs. Feature → Business Impact → Application: IE3 efficiency and 89.50% rated efficiency reduce energy consumption and cooling load, contributing to lower operating costs and compliance with energy standards in hygienic facilities. Feature → Business Impact → Application: Regreasable bearings and 1.13 in shaft diameter improve bearing life and shaft integrity under washdown cycles, extending service intervals in demanding environments such as packaging and material handling. Feature → Business Impact → Application: The motor’s 230/460 V three-phase, 60 Hz configuration supports common plant power systems, enabling straightforward electrical integration and reducing wiring complexity for maintenance teams.
