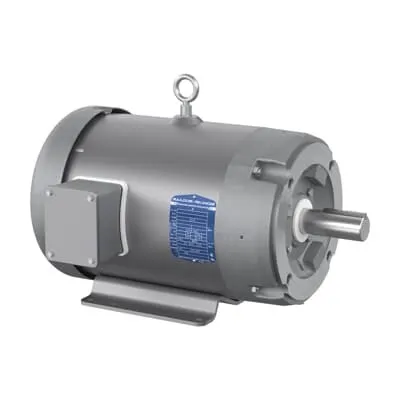

ABB 7BIDCSWDM3710T Washdown Motor - TEFC, 60Hz
Part Number: 7BIDCSWDM3710T
Quick Summary
ABB 7BIDCSWDM3710T is a washdown motor engineered for dependable performance in sanitary production environments. This 7.5 HP, 230/460 V three-phase model is designed to withstand frequent cleaning and washdown cycles without compromising reliability. End users often struggle with corrosion, downtime from cleaning, and fluctuating efficiency in wet processing lines. This motor combines CSA/UR certification, NEMA design compatibility, and a TEFC enclosure to address these issues, delivering robust protection and predictable performance. With a 213TC frame and C-face mounting, it fits easily into existing line layouts while enabling scalable upgrades and lower lifecycle costs for meat/pabic, dairy, and pharmaceutical applications.
Product Information
Extended Description
7BIDCSWDM3710T ABB: Washdown Motor 7.5 Hp 230 V (IDCSWDM3710T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213TC,3740M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDCSWDM3710T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYH885: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
IDCSWDM3710T
Gross Volume
7192.91 in³
Gross Weight
136 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213TC,3740M,TEFC
Lubrication
Regreasable
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
Paint-Free Washdown, 7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (IDCSWDM3710T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
81 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
136 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19 A | 9.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: TEFC enclosed, stainless steel frame and paint-free washdown construction provide superior corrosion resistance and easier maintenance, reducing downtime and cleaning frequency in sanitary plants. This translates to higher line uptime and lower total cost of ownership for beverage packaging and food processing lines. Feature → 7.5 HP, 1770/1800 rpm, 60 Hz, 230/460 V operation delivers ample torque at standard line speeds, enabling stable conveyor and mixer performance in poultry processing and dairy bottling lines. Application: high-throughput sanitary equipment where consistent speed and torque improve yield. Feature → Foot-mounted with C-face mounting and 213TC frame simplifies retrofit projects and spare-part compatibility, reducing installation time and training requirements for maintenance teams. Application: plant-wide retrofits and OEM integration in industries like cosmetics and pharmaceuticals. Feature → Direct On Line starting with 3-phase power minimizes control complexity and startup transients, cutting soft-start equipment needs and enabling straightforward motor control with existing VFDs where applicable. Application: scrubber systems and washdown conveyors. Feature → IE3 efficiency and 1.00 service factor deliver measurable energy savings and predictable performance under load, supporting sustainability programs and operating-cost reduction. Application: continuous-duty processing lines in meat, fish, and ready-to-eat product production. Feature → 1.38 in shaft diameter and stainless steel frame for durability and easier coupling alignment, improving drive reliability and reducing rework in bottling and filling lines. Application: high-load drives and precision handling in pharmaceutical packaging. All specifications are aligned with industry standards (NEMA, CSA/UR) to support compliant operations while offering long-term reliability in aggressive cleaning environments.
Get a Quick Quote for a ABB 7BIDCSWDM3710T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BIDCSWDM3710T?
Enquire Now
FAQs
Yes. The 213TC frame size and C-face mounting are standard for this model, enabling straightforward mounting to existing bases and compatible couplings. The footprint supports common gasketed interfaces and simplifies alignment with conveyors and pumps in washdown environments.
The motor runs on 230/460 V, 60 Hz, 3-phase with a rated speed of 1770 r/min (synchronous 1800 r/min). It offers 7.5 HP and a rated current of 19 A / 9.5 A, with TEFC enclosure for harsh cleaning environments and a 1.00 service factor for continuous duty.
Yes. The motor is described as a paint-free washdown with TEFC enclosure and stainless-steel frame, purpose-built for sanitary lines. It meets NEMA/CSA standards and is designed for frequent washdowns, high cleanliness, and reliable uptime in those industries.
The IDCSWDM3710T carries CSA and UL recognition (UR) and adheres to NEMA design guidelines. It is specified for TEFC protection and is built to withstand continuous operation in wet, high-humidity environments typical of food, beverage, and pharmaceutical processing.
The paint-free washdown construction and stainless-steel frame reduce cleaning-downtime and corrosion-related maintenance. Direct-on-line starting minimizes control hardware, while IE3 efficiency lowers operating energy costs, contributing to a shorter payback period in continuous-production facilities.
