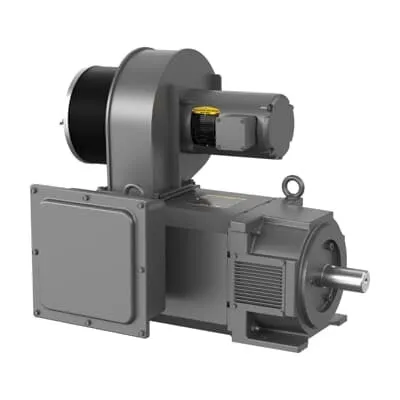

ABB IDDRPM21504 AC VS Laminated Frame - CCSA US UR
Part Number: 7BIDDRPM21504
Quick Summary
IDDRPM21504 is a three-phase AC motor with a laminated frame designed for industrial drive systems. This ABB unit delivers 50 HP at 460 V, built on the RL2168 frame with a DPFV enclosure for demanding applications like conveyors, pumps, and process equipment. By ensuring immediate availability across multiple warehouses and avoiding made-to-order delays, it helps minimize downtime and accelerate project timelines. The design aligns with key certifications such as NEMA standards, CCSA US | UR safety certification, and United States origin, supporting compliance in regulated facilities. For MRO teams and procurement, this combination translates to reliable performance, simpler spares management, and smoother integration with standard VFDs and motor controllers. It also complements a robust ABB motor portfolio for scalable automation.
Product Information
Extended Description
7BIDDRPM21504 ABB: AC VS Laminated Frame - RPMAC 50 Hp 460 V (IDDRPM21504)
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,1750,460V,RL2168,DPFV,F1
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
50BC03JPP30A, Ball
Bearing NDE
45BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDDRPM21504
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
DPFV
Frame Material
Laminated
Frame Size
2168
Frequency (f)
60 Hz
Global Commercial Alias
IDDRPM21504
Gross Volume
37665 in³
Gross Weight
186.426 kg
Horsepower Rating UL/CSA
50.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
50HP,1750,460V,RL2168,DPFV,F1
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 50 HP, 1800/3600 RPM, Frame Size Rl2168, Standard Mounting, 3 Phase, DPFV Enclosure, 460 V, (IDDRPM21
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
RL2168
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles (High)
2
Order Multiple
1 piece
Output Power
50 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
46.5 in
Product Net Height
27 in
Product Net Weight
186.426 kg
Product Net Width
30 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
62 A
Rated Speed
1760 r/min | 2010 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.88 in
Shaft Grounding
Shaft Grounding
Short Description
50 HP, 1800/3600 RPM, Frame Size Rl2168, Standard, 3 PH, DPFV, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature: Laminated RL2168 frame with DPFV enclosure. Business Impact: Enhanced thermal management and rugged protection support continuous duty in 40 C ambient conditions. Application: Industrial conveyors, pumps, and processing equipment where reliability under load is critical. Feature: Stocked at multiple warehouses. Business Impact: Reduced lead times and predictable procurement, lowering downtime risk. Application: High‑mix, high‑volume manufacturing lines that require fast replacements and routine maintenance.Feature: Compliance and safety. Business Impact: NEMA standards and CCSA US | UR certification simplify audits and regulatory adherence. Application: Plants in regulated environments, OEM collaborations, and projects with strict safety requirements.Feature: Mechanical compatibility. Business Impact: Foot mounting, horizontal orientation, and standard RL2168 dimensions ease retrofit and alignment with existing couplings. Application: Retrofit projects in conveyors, fans, and pumps where proven fitment accelerates installation.Feature: Electrical performance. Business Impact: 3‑phase 460 V operation, 62 A current, 50 HP output with 1760/2010 r/min speeds supports broad drive compatibility and efficient control with standard VFDs. Application: Heavy industry drives requiring dependable motor control and repeatable performance.Additional value: Minimum order quantity is 1 piece, with stock in US and international warehouses, enabling rapid deployment and scalable automation integration across facilities.
Get a Quick Quote for a ABB 7BIDDRPM21504
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BIDDRPM21504?
Enquire Now
FAQs
IDDRPM21504 uses a standard RL2168 laminated frame with a DPFV enclosure and foot mounting, enabling straightforward retrofits to existing systems such as conveyors, pumps, and fans. Verify space: 46.5 in length, 27 in height, 30 in width, 1.88 in shaft, and 186 kg weight for proper alignment and couplings.
This motor operates on 3-phase 460 V with a rated current of 62 A and delivers 50 HP. The rated speed is 1760 r/min with a synchronous speed of 1800 r/min and 60 Hz supply. Insulation class is H, suitable for continuous duty in controlled industrial settings.
Yes. The unit conforms to NEMA standards and carries the CCSA US | UR safety certification, with United States origin. These certifications support regulatory compliance, simplify audits, and provide assurance for safe operation in heavy industry.
Yes, designed for continuous operation in ambient up to 40 °C, with a laminated frame and DPFV enclosure for mechanical protection. It uses foot mounting with horizontal orientation and a 1.88 in shaft, ensuring compatibility with standard drive systems and reducing maintenance scheduling.
The model is stocked at multiple warehouses, not made to order, with a minimum order of 1 piece and rapid lead times. This reduces downtime risk, lowers total cost of ownership, and supports faster project ramp-up when replacing aging motors in critical production lines.
