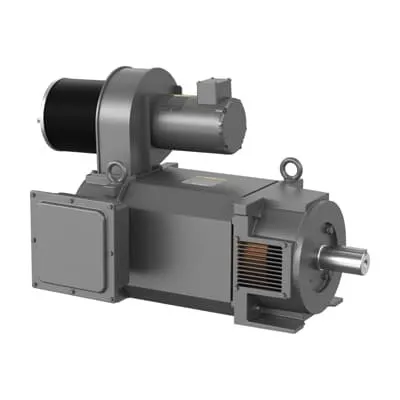

ABB 7BIDDRPM281504 RPMAC - 150HP 460V CCSA US UR
Part Number: 7BIDDRPM281504
Quick Summary
ABB 7BIDDRPM281504 is a high-efficiency AC VS Laminated Frame motor for industrial drives, ideal for heavy-duty conveyors and processing lines. In procurement, engineers often face long lead times and parts mismatches when sourcing 460 V three-phase solutions. This model combines a rugged RL2882 laminated frame with a DPFV enclosure, delivering reliable performance under 40 °C ambient conditions and meeting demanding standards. With 0-day lead time and multi-warehouse stocking, it supports rapid deployment and minimized downtime. The unit is designed for foot-mounted installation with 3-phase power, aligning with common OEM configurations while offering robust certification support (CCSA US | UR) for safer, compliant operation.
Product Information
Extended Description
7BIDDRPM281504 ABB: AC VS Laminated Frame - RPMAC 150 Hp 460 V (IDDRPM281504)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
150HP,1750,460V,RL2882,DPFV,F1
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
75BC02J30X, Ball
Bearing NDE
55BC02J30X
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDDRPM281504
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015381
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
DPFV
Frame Material
Laminated
Frame Size
2882
Frequency (f)
60 Hz
Global Commercial Alias
IDDRPM281504
Gross Volume
0 in³
Gross Weight
404.604 kg
Horsepower Rating UL/CSA
150.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
150HP,1750,460V,RL2882,DPFV,F1
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 150 HP, 1800/3600 RPM, Frame Size Rl2882, Standard Mounting, 3 Phase, DPFV Enclosure, 460 V, (IDDRPM2
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
RL2882
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles (High)
2
Order Multiple
1 piece
Output Power
150 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
404.604 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
180 A
Rated Speed
1755 r/min | 2000 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
2.62 in
Shaft Grounding
Shaft Grounding
Short Description
150 HP, 1800/3600 RPM, Frame Size Rl2882, Standard, 3 PH, DPFV, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → Business Impact → Application: Laminated RL2882 frame delivers high strength-to-weight ratio and heat dissipation efficiency, improving motor reliability under continuous duty. This translates to fewer unscheduled outages on conveyors and pumps, enabling predictable production runs and reduced maintenance costs in manufacturing environments. Feature → Application: 3-phase, 60 Hz operation at 460 V provides seamless integration with standard drives and VFDs, minimizing wiring changes and commissioning time during retrofits. Business impact: faster start-up, easier spare parts management, and lower total cost of ownership for automation projects. Feature → Application: DPFV enclosure and foot-mounted, horizontal mounting simplify installation and serviceability, enabling compact layouts and straightforward alignment with existing equipment. Business impact: reduced installation risk, lower labor costs, and improved maintenance accessibility in harsh production floors. Feature → Application: 150 HP rating with 180 A rated current supports robust torque for high-load applications such as heavy conveyors and process pumps. Business impact: sustained performance under peak demand, improved process stability, and greater energy management control. Additional context: stock availability across multiple warehouses and a 0-day lead time helps shorten project timelines and reduces downtime risk. This aligns with industry expectations for reliable, standards-compliant industrial motors in steel, chemical, and food & beverage facilities.
Get a Quick Quote for a ABB 7BIDDRPM281504
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BIDDRPM281504?
Enquire Now
FAQs
This is a 3-phase, 460 V motor designed for direct integration with common industrial drives and VFDs. Its 60 Hz operation and 150 HP rating align with standard Western automation panels, simplifying wiring, protection synchrony, and commissioning while reducing integration risk in new or retrofit projects.
Ideal for continuous-duty applications such as conveyors, process pumps, and industrial fans. The RL2882 frame, DPFV enclosure, and 40 °C ambient rating support reliable operation in hot, dusty or demanding factory floors, with straightforward installation in horizontal, foot-mounted configurations.
The unit carries certification references including CCSA US and UR. It also lists NEMA compatibility and a laminated frame construction, which helps ensure compliance with common North American industrial safety and performance expectations.
Plan for horizontal, foot-mounted installation with the RL2882 frame in a DPFV enclosure. Ensure drive coupling and shaft alignment match the 2.62 in shaft diameter, and account for a 40 °C ambient environment when selecting cooling and wiring routes.
Stocked at multiple warehouses with 0-day lead time, the RPMAC 150 HP motor minimizes downtime and accelerates project timelines. Its robust build, standard mounting, and certifications help reduce maintenance costs and improve ROI through longer service life and quicker phase-out of legacy equipment.
