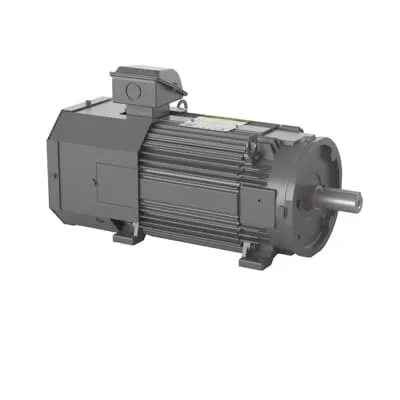

ABB IDFRPM18104C AC VS Laminated Frame - 10HP, 460V, TEFC
Part Number: 7BIDFRPM18104C
Quick Summary
ABB RPMAC 10HP motor is a versatile AC motor designed for continuous-duty drives in manufacturing and process lines. It delivers reliable torque at a 460 V three-phase supply with a TEFC enclosure, making it suitable for harsh industrial environments. Many engineers struggle with mismatched voltage, enclosure, or mounting options that lead to costly downtime; this unit combines a laminated frame with C-face mounting, 60 Hz operation, and a robust insulation system to simplify integration. Built to meet NEMA standards with CSA US/UR recognition, it supports safe operation and regulatory compliance in elevated ambient temperatures up to 40 °C. With USA origin and immediate stock at multiple warehouses, it helps shorten procurement cycles and improve total-cost-of-ownership for core applications like conveyors and pumps.
Product Information
Extended Description
7BIDFRPM18104C ABB: AC VS Laminated Frame - RPMAC 10 Hp 460 V (IDFRPM18104C)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1765RPM,3PH,60HZ,1844C,TEFC,FT
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
45BC02JPP30A, Ball
Bearing NDE
35BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDFRPM18104C
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEFC
Frame Material
Laminated
Frame Size
1844
Frequency (f)
60 Hz
Global Commercial Alias
IDFRPM18104C
Gross Weight
81.193 kg
Horsepower Rating UL/CSA
10.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
10HP,1765RPM,3PH,60HZ,1844C,TEFC,FT/210
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 10 HP, 1800/3600 RPM, Frame Size Fl1844Cz, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, (IDFR
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL1844CZ
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
2
Order Multiple
1 piece
Output Power
10 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
81.193 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.90 A
Rated Speed
1765 r/min | 3530 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800/3600 RPM, Frame Size Fl1844Cz, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → Business Impact → Application: 10 HP, 460V, 3-phase, 60 Hz delivers strong starting torque and efficient operation for medium-load equipment, reducing energy consumption and improving line throughput in conveyors and pumps. Application: use in continuous-duty drives where reliable power is essential. Feature → Laminated frame with heavy heat-dissipation capability improves motor longevity and maintains performance under high ambient temperatures; Business Impact → lower maintenance costs, fewer unplanned outages; Application → process lines with demanding loads. Feature → TEFC enclosure and C-Face mounting provide robust protection against dust and moisture while enabling easy alignment and mounting; Business Impact → quicker installation and fewer field modifications; Application → industrial environments requiring durable, plug-and-play installation. Feature → Frame FL1844CZ, Shaft 1.38 in, and 3-phase 460 V compatibility deliver standardization across legacy systems and new equipment; Business Impact → reduced integration time, improved spare parts compatibility; Application → retrofits and new build-outs. Feature → Insulation Class H and ambient operation up to 40 °C increase reliability in hot factories; Business Impact → extended motor life, lower replacement risk; Application → high-temperature manufacturing settings. Feature → Stocked at multiple warehouses (USA, China) with 0-day lead time; Business Impact → minimized downtime and faster project timelines; Application → OEMs and integrators requiring rapid deployment. These facets combine to offer a practical balance of performance, compliance, and procurement efficiency for industrial automation projects.
