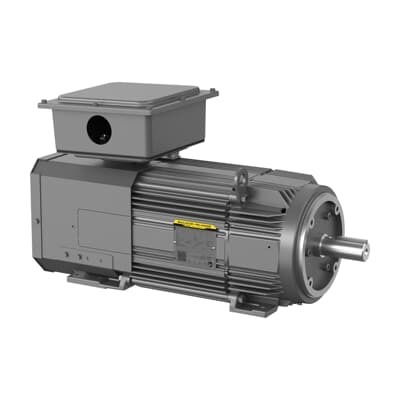

ABB IDFRPM21254C AC VS Laminated Frame Motor - 25 HP 460V
Part Number: 7BIDFRPM21254C
Quick Summary
ABB IDFRPM21254C is a high-efficiency AC motor designed for demanding industrial automation and machinery. This laminated-frame, 25 HP, 460 V three-phase motor is built for continuous duty with a TEFC enclosure and C-face mounting for versatile integration across equipment lines. Engineers often struggle with aligning mounting, thermal management, and regulatory compliance in global plants; this model addresses those pain points with robust construction and consistent supply. It supports NEMA standards, UL/CSA listings, and CC SA UR approvals, delivering reliable performance across North America and beyond. With stock in multiple warehouses and no minimum order quantity, procurement becomes predictable, enabling tighter maintenance windows, reduced downtime, and lower total cost of ownership for high-demand applications.
Product Information
Extended Description
7BIDFRPM21254C ABB: AC VS Laminated Frame - RPMAC 25 Hp 460 V (IDFRPM21254C)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1750,460V,FL2173,TEFC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
50BC03JPP30A, Ball
Bearing NDE
45BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDFRPM21254C
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEFC
Frame Material
Laminated
Frame Size
2173
Frequency (f)
60 Hz
Global Commercial Alias
IDFRPM21254C
Gross Volume
0 in³
Gross Weight
161.025 kg
Horsepower Rating UL/CSA
25.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
25HP,1750,460V,FL2173,TEFC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 25 HP, 1800/3600 RPM, Frame Size Fl2173Cz, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, (IDFRPM21
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2173CZ
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
2
Order Multiple
1 piece
Output Power
25 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
161.025 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
34 A
Rated Speed
1780 r/min | 3555 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Shaft Grounding
Shaft Grounding
Short Description
25 HP, 1800/3600 RPM, Frame Size Fl2173Cz, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature: Laminated frame with TEFC enclosure and frame FL2173CZ. Business Impact: Improved heat dissipation and rugged protection extend motor life in harsh environments. Application: Ideal for continuous-duty drives in conveyors, pumps, and mixers across manufacturing lines. Long-tail keywords woven in: 3-phase 460 V motor, industrial motor, NEMA-compliant motor.Feature: 25 HP at 460 V, 3-phase, 60 Hz. Business Impact: Delivers substantial starting torque and reliable power for high-load tasks, reducing start-up strain on equipment. Application: Suitable for fans, compressors, and material-handling systems in process industries. Long-tail keywords: 460V AC motor, 25 horsepower drive, 3-phase power.Feature: C-Face mounting with foot-mount base. Business Impact: Flexible installation options simplify OEM and retrofit projects, reducing engineering time. Application: Quick integration into existing frames and new equipment with minimal adaptors. Long-tail keywords: C-Face flange, foot-mounted motor, versatile mounting.Feature: Insulation Class H and ambient temperature rating of 40 °C. Business Impact: Enhanced thermal tolerance and longer service life in hot facilities, lowering maintenance costs. Application: Industrial plants and chemical processing environments where heat is a concern. Long-tail keywords: high-temperature motor, TEFC enclosure, durable insulation.Feature: Rated speed 1780 r/min / 3555 r/min and synchronous 1800 r/min. Business Impact: Enables compatibility with standard VFDs and drive systems, enabling precise speed control and energy savings. Application: Conveyor lines and process equipment requiring variable-speed operation. Long-tail keywords: 60 Hz motor, variable-speed drive compatibility, synchronous speed.Feature: Stocked at multiple warehouses with 0-day lead time; warranty terms. Business Impact: Rapid fulfillment reduces downtime and improves maintenance planning. Application: Critical spare parts for mass-produced assemblies and global plants. Long-tail keywords: stock availability, 0-day lead time, warranty return.
