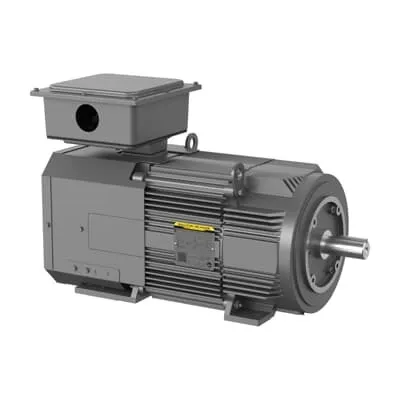

ABB IDFRPM25404 AC Motor - TEFC 460V, 40HP, Frame FL2586Z
Part Number: 7BIDFRPM25404
Quick Summary
ABB IDFRPM25404 is a high-performance 40 HP AC motor designed for continuous-duty drives in industrial automation. It combines a laminated frame with a TEFC enclosure to deliver reliable operation in demanding environments such as pumps, conveyors, and fans. The 460 V, 3-phase design aligns with North American electrical systems while maintaining efficient energy use and predictable performance. For reliability-focused teams, the motor offers a robust 1800/3600 rpm range and a 1.00 service factor to help sustain uptime under variable loads. With UL/UR recognition and NEMA-compliant design, it also supports regional interchange and safe installation. This combination of frame FL2586Z, foot-mount compatibility, and 40 HP class makes it a scalable choice for growing manufacturing lines.
Product Information
Extended Description
7BIDFRPM25404 ABB: AC VS Laminated Frame - RPMAC 40 Hp 460 V (IDFRPM25404)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,1750,460V,FL2586,TEFC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
65BC03JPP30A, Ball
Bearing NDE
50BC03JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDFRPM25404
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEFC
Frame Material
Laminated
Frame Size
2586
Frequency (f)
60 Hz
Global Commercial Alias
IDFRPM25404
Gross Volume
33607.875 inÂł
Gross Weight
297.103 kg
Horsepower Rating UL/CSA
40.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
40HP,1750,460V,FL2586,TEFC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 40 HP, 1800/3600 RPM, Frame Size Fl2586Z, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, (IDFRPM2
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2586Z
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
2
Order Multiple
1 piece
Output Power
40 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
46.5 in
Product Net Height
24.5 in
Product Net Weight
297.103 kg
Product Net Width
29.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
51 A
Rated Speed
1780 r/min | 3560 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
2.12 in
Shaft Grounding
Shaft Grounding
Short Description
40 HP, 1800/3600 RPM, Frame Size Fl2586Z, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature 1: 3-phase 460 V operation with 40 HP power. Business Impact: Enables direct integration with common North American power systems, reducing wiring complexity and energy waste. Application: Ideal for conveyor belts and pump trains in mechanical handling and processing lines. Long-tail keywords embedded include 'industrial motor 40 HP' and '460 V 3-phase motor'.Feature 2: TEFC enclosure with laminated frame. Business Impact: Delivers dust, moisture, and environmental protection, lowering maintenance costs and extending motor life in harsh plants. Application: Suitable for food processing, mining, and textile facilities where reliability is critical.Feature 3: Frame FL2586Z with 1780/3560 rpm range (1800 r/min synchronous). Business Impact: Provides torque versatility and compatibility with variable-speed drives, improving process control and energy efficiency. Application: Drives conveyors, mixers, and fans in automation lines.Feature 4: Foot-mounted base and horizontal mounting. Business Impact: Simplifies installation, alignment, and serviceability, reducing installation time and downtime. Application: OEM assemblies and retrofit projects with standard shaft 2.12 in diameter.Feature 5: Certifications and standards (NEMA, UL/UR, CCSA US). Business Impact: Ensures regulatory compliance and safe interchangeability across sites, reducing procurement risk. Application: Global manufacturing setups needing cross-border certification alignment.Feature 6: Availability and rugged build (0 day lead time, multiple warehouses). Business Impact: Minimizes downtime and accelerates project timelines, improving ROI for capital equipment deployments.
