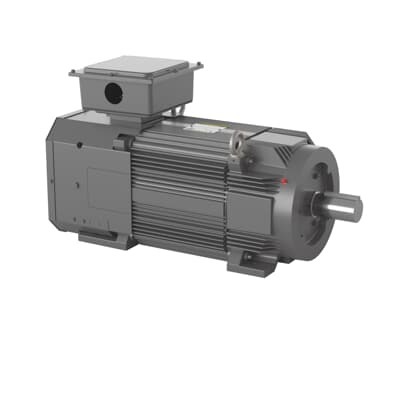

ABB 7BIDFRPM28604 Motor - CCSA US/UR Certified
Part Number: 7BIDFRPM28604
Quick Summary
ABB 7BIDFRPM28604 motor delivers reliable 60 HP drive for pumps, fans, and conveyors. Engineers often struggle with downtime and maintenance costs, but this AC VS Laminated Frame unit is designed to minimize those issues through a robust laminated core, TEFC enclosure, and durable bearings. It carries NEMA standards and CCSA US/UR certification to meet regulatory and contractor expectations while the 460 V, 3-phase design aligns with common plant power systems. Ready-to-run out of the box, the RPMAC motor supports fast deployment and consistent performance, delivering value across manufacturing, processing, and packaging environments. For procurement teams seeking dependable industrial motors with strong compliance and quick availability, this ABB solution fits seamlessly into existing automation architectures and spare-parts strategies.
Product Information
Extended Description
7BIDFRPM28604 ABB: AC VS Laminated Frame - RPMAC 60 Hp 460 V (IDFRPM28604)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1750,460V,FL2890,TEFC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
75BC02J30X, Ball
Bearing NDE
55BC02J30X
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDFRPM28604
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEFC
Frame Material
Laminated
Frame Size
2890
Frequency (f)
60 Hz
Global Commercial Alias
IDFRPM28604
Gross Volume
38822 in³
Gross Weight
384.646 kg
Horsepower Rating UL/CSA
60.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
60HP,1750,460V,FL2890,TEFC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 60 HP, 1800/3600 RPM, Frame Size Fl2890, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ID
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2890
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
2
Order Multiple
1 piece
Output Power
60 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
47 in
Product Net Height
28 in
Product Net Weight
384.646 kg
Product Net Width
29.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
76 A
Rated Speed
1785 r/min | 3565 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
2.62 in
Shaft Grounding
Shaft Grounding
Short Description
60 HP, 1800/3600 RPM, Frame Size Fl2890, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → Business Impact → Application: Laminated frame and TEFC enclosure provide enhanced thermal management and dust/moisture protection, reducing maintenance cycles and extending motor life in harsh factory environments; ideal for manufacturing lines and packaging equipment. Feature → Business Impact → Application: 3-phase, 460 V operation ensures compatibility with standard plant feeders, enabling straightforward installation and reduced electrical adaptation costs for pump and conveyor applications. Feature → Business Impact → Application: Foot-mounted horizontal orientation and FL2890 frame size simplify retrofits and new installations, speeding commissioning in conveyor belts and HVAC fans. Feature → Business Impact → Application: Ready-to-ship stock at multiple warehouses with 0 day lead time minimizes project delays and inventory holding costs in mixed-warehouse supply chains. Feature → Business Impact → Application: Precision bearings (75BC02J30X) and shaft diameter of 2.62 in enhance reliability and torque delivery for high-demand drives in mixers and crushers. Feature → Business Impact → Application: Synchronous speeds around 1800 r/min (and higher settings) support flexible drive configurations when paired with VFDs for optimized process control in textile and food & beverage lines. Long-tail keywords integrated: 60 HP AC motor, 460 V, TEFC, NEMA standards, CCSA US/UR certification, laminated frame, foot-mounted motor, 3-phase motor, RPMAC, frame FL2890, industrial automation, ready-to-ship motors.
