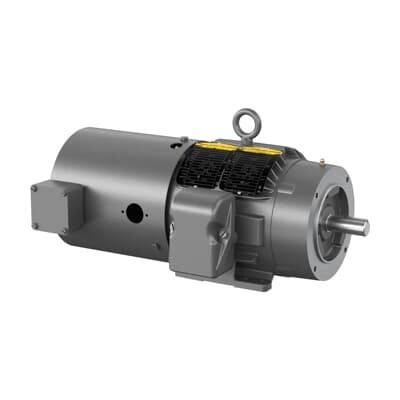

ABB IDM3581T-5 AC Inverter / Vector Duty - IE3
Part Number: 7BIDM3581T-5
Quick Summary
AC Inverter / Vector Duty ABB IDM3581T-5 is designed for precise motor control in heavy machinery and process lines. Users often struggle with startup surges, energy waste, and speed regulation in conveyors, pumps, and machine tools. This drive delivers IE3 Premium Efficiency, CSA/UR certification, and TEBC enclosure, enabling reliable performance in harsh industrial environments. By providing smooth acceleration, accurate speed control, and robust fault protection, it helps reduce downtime and maintenance costs. With 3-phase 60 Hz operation, a 1 HP rating, and a compact 143TC frame, it fits in retrofit projects and new equipment while supporting efficient uptime and scalable automation.
Product Information
Extended Description
7BIDM3581T-5 ABB: AC Inverter / Vector Duty 1 Hp 575 V (IDM3581T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143TC,0520M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDM3581T-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
05LYE535: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
IDM3581T-5
Gross Volume
3590.443 inÂł
Gross Weight
60 lb
IC Class
TEBC
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
1HP,1770RPM,3PH,60HZ,143TC,0520M,TEBC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
AC Inverter / Vector Duty, 1 HP, 1800 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 575 V, 60 Hz (IDM3581T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
72 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
60 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.2 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B05E535X567G1
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143Tc, C-Face, 3 PH, TEBC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101106
Voltage Code
L
Voltage Rating
575 V
Feature: 3-phase 575 V input and 1 HP output within a TEBC enclosure and 143TC frame. Business Impact: Delivers compact yet robust power for tight spaces while maintaining strong startup torque and reliable operation. Application: Ideal for conveyor drives, packaging machines, and small pumps where space is at a premium. Feature: Direct On Line starting and 60 Hz compatibility. Business Impact: Simplifies integration with existing electrical systems and reduces hardware costs while enabling immediate motor engagement. Application: Line start tasks in manufacturing cells and automated assembly equipment. Feature: IE3 Premium Efficiency and insulation class H. Business Impact: Lowers energy consumption and thermal stress, extending motor life and reducing utility bills. Application: High-duty continuous operations in process lines and automation loops. Feature: TEBC enclosure with C-Face drive end flange and 143TC frame. Business Impact: Improves protection against dust and moisture in harsh environments, enabling safer maintenance and longer service intervals. Application: Food and beverage, packaging, and outdoor automation where environmental exposure is common. Feature: Regreasable bearings and robust 6205 ball bearings. Business Impact: Reduces maintenance frequency and extends service life in high-load, vibration-prone applications. Application: Heavy-duty conveyors, mixers, and machinery with frequent load changes. Feature: Stocked across multiple warehouses with 0 day lead time. Business Impact: Shortens procurement cycles and accelerates project delivery, improving total cost of ownership. Application: OEM builds and retrofit projects requiring rapid deployment in North America and abroad.
