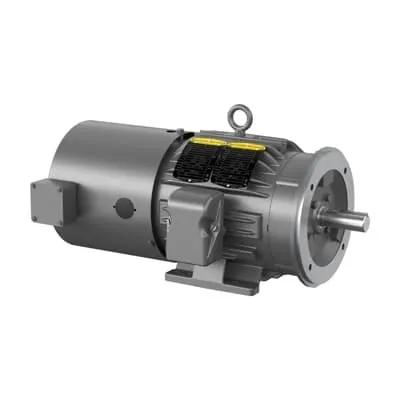

ABB IDM3664T AC Inverter / Vector Duty - IE3 Premium Efficiency
Part Number: 7BIDM3664T
Quick Summary
AC Inverter / Vector Duty IDM3664T delivers precise motor control for 3‑phase systems in automation lines, conveyors, and process equipment. This drive helps engineers overcome startup torque fluctuations, accelerates cycle times, and reduces wear on mechanicals by smoothing velocity profiles. The unit achieves premium IE3 efficiency and is CSA/UR certified, with a NEMA TEBC enclosure that withstands challenging environments. With 230/460 V compatibility and a compact 184TC frame, IDM3664T enables straightforward retrofits and scalable control across production lines, while maintaining safe operation and predictable maintenance intervals. For OEMs and integrators, the combination of reliability, efficiency, and rugged packaging translates to lower energy costs and higher uptime.
Product Information
Extended Description
7BIDM3664T ABB: AC Inverter / Vector Duty 2 Hp 230 V (IDM3664T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1165RPM,3PH,60HZ,184TC,0642M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Base Speed
1200 r/min
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDM3664T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
06LYF552: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
IDM3664T
Gross Volume
7561.383 inÂł
Gross Weight
124 lb
IC Class
TEBC
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
2HP,1165RPM,3PH,60HZ,184TC,0642M,TEBC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2200 r/min
Medium Description
AC Inverter / Vector Duty, 2 HP, 1200 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (IDM3664T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
68 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
124 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.4 A | 3.2 A
Rated Efficiency
88.50 %
Rated Speed
1165 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.13 in
Short Description
2 HP, 1200 RPM, Frame Size 184Tc, C-Face, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101106
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 2 HP AC Inverter / Vector Duty drive provides precise speed control for small- to mid-size motors, delivering smoother start/stop profiles and reduced mechanical wear. This translates to higher throughput on conveyors and packaging lines, while extending belt and bearing life. Feature → Business Impact → Application: The 184TC frame with TEBC enclosure enables robust installation in demanding environments, supporting horizontal mounting and C-Face interfaces for quick upgrades in existing machines. Feature → Business Impact → Application: 230 V / 460 V, 60 Hz, 3-phase input compatibility allows seamless integration with common plant power sources, minimizing rewiring and downtime during retrofits. Feature → Business Impact → Application: IE3 premium efficiency reduces energy consumption across continuous operation, delivering measurable OPEX savings and better sustainability metrics for pumps, fans, and OEM equipment. Feature → Business Impact → Application: Direct On Line starting capability simplifies commissioning and reduces starter hardware, enabling faster startup on drives feeding high-inertia loads such as conveyors and fans. Feature → Business Impact → Application: CSA / UR certification and NEMA TEBC compliance provide regulatory alignment and rugged protection in harsh environments, supporting maintenance planning, warranty coverage, and long-term ROI for automated lines.
