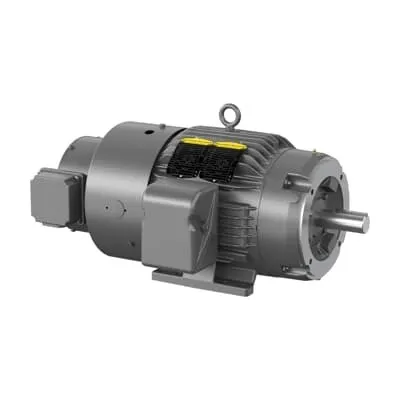

ABB IDM3764T AC Inverter / Vector Duty - IE3 Premium
Part Number: 7BIDM3764T
Quick Summary
ABB IDM3764T AC inverter / vector duty drives 3 HP motors in industrial automation applications. This compact, robust drive helps you achieve precise speed control, reduced torque ripple, and smoother starting across conveyors, pumps, and fans. It is CSA and UR certified with IE3 premium efficiency and a NEMA-compatible TEBC enclosure, ensuring reliability in demanding environments. The unit supports 230/460 V 3-phase power with a 60 Hz rating, frame size 215TC, and C-face mounting, delivering consistent performance in retrofits and new installations alike. By integrating IDM3764T with existing motor controls, you can shorten commissioning time, improve energy efficiency, and lower total cost of ownership for mission-critical processes.
Product Information
Extended Description
7BIDM3764T ABB: AC Inverter / Vector Duty 3 Hp 230 V (IDM3764T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
38M 6P TEBC HOR 215TC T'STATS INVER
Altitude
1000 m
Ambient Temperature
40 °C
Base Speed
1200 r/min
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDM3764T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
07LYD515: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
IDM3764T
Gross Volume
9144.346 inÂł
Gross Weight
187 lb
IC Class
TEBC
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
38M 6P TEBC HOR 215TC T'STATS INVERTER
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2300 r/min
Medium Description
AC Inverter / Vector Duty, 3 HP, 1200 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (IDM3764T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
70 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
187 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9 A | 4.5 A
Rated Efficiency
90.20 %
Rated Speed
1165 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.38 in
Short Description
3 HP, 1200 RPM, Frame Size 215Tc, C-Face, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101106
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application. The IDM3764T is a 3-phase AC inverter / vector-duty drive designed for 3 HP motors, operating on 230/460 V at 60 Hz. This enables precise motor control and torque management, reducing wear on mechanical systems and improving process consistency in material handling lines and packaging equipment. With IE3 premium efficiency and a 70% power factor, the drive lowers energy costs and supports compliance with efficiency mandates while maintaining strong performance at partial loads. The TEBC enclosure, 215TC frame, and C-face mounting simplify installation in compact spaces and allow straightforward retrofits for existing belt conveyors and pumps in manufacturing cells. Direct-on-line starting and 9 A / 4.5 A rated current specifications provide robust startup in steady-state operation, while a 1200 r/min base speed and 2300 r/min maximum speed deliver scalable acceleration for line speed optimization. Stocked at multiple warehouses and ready-to-ship, IDM3764T reduces downtime and accelerates project timelines, supporting ROI through improved uptime and predictable maintenance planning. Compatibility with standard motor bases and 3-phase drives ensures easy integration with existing automation architectures, minimizing redesign for retrofits and new builds alike. Long-tail keywords such as AC inverter drive, 3-phase VFD, frame 215TC, and C-face mounting appear naturally to support search relevance and industry intent while preserving readability for engineers and procurement professionals.
