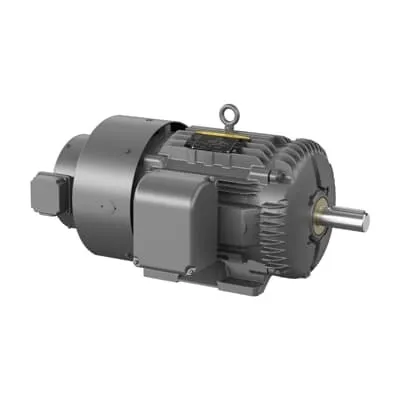

ABB IDM4102T AC Inverter / Vector Duty - CSA UR
Part Number: 7BIDM4102T
Quick Summary
ABB IDM4102T is an AC inverter / vector duty drive for 20 HP motors in industrial applications such as conveyors and pumps. It delivers precise speed control, reliable performance, and simple integration into existing 230/460 V, 3-phase systems. Many drives struggle with energy efficiency, heat management, and complex commissioning in demanding environments; this model addresses those challenges with a TEBC enclosure, 286T frame, and premium efficiency. With CSA and UR certifications alongside NEMA-aligned features, it supports safe operation in regulated facilities. The combination of robust enclosure protection, standard mounting, and easy installation translates to lower lifecycle costs, improved uptime, and straightforward integration with existing motor assets and control architectures.
Product Information
Extended Description
7BIDM4102T ABB: AC Inverter / Vector Duty 20 Hp 230 V (IDM4102T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
54M 6P TEBC HOR 286T TSTAT INVERTE
Altitude
1000 m
Ambient Temperature
40 °C
Base Speed
1200 r/min
Bearing
6311, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDM4102T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
10LYT004: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
IDM4102T
Gross Volume
24317.313 in³
Gross Weight
455 lb
IC Class
TEBC
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
54M 6P TEBC HOR 286T TSTAT INVERTER DTY
Lubrication
Regreasable
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
AC Inverter / Vector Duty, 20 HP, 1200 RPM, Frame Size 286T, Standard Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (IDM4102T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
77 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
455 lb
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
54 A | 27 A
Rated Efficiency
91.70 %
Rated Speed
1180 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.88 in
Short Description
20 HP, 1200 RPM, Frame Size 286T, Standard, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101106
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The IDM4102T delivers vector-duty control for 20 HP motors, enabling precise torque and speed regulation that improves process stability and reduces mechanical stress on rotating equipment in conveyors and pumps. This translates to measurable efficiency gains and reduced maintenance costs in continuous operations. Feature → Business Impact → Application: Dual voltage support (230 V / 460 V) and 60 Hz compatibility allow seamless integration into established plant electrical infrastructure, minimizing re-wiring and downtime. Application: retrofit projects and new line installations across manufacturing floors. Feature → Business Impact → Application: TEBC enclosure with 286T frame provides superior protection in harsh environments, supporting safe panel installation and longer service intervals. Application: food & beverage, chemical processing, and metals where enclosure integrity matters. Feature → Business Impact → Application: Premium efficiency with insulation class H and NEMA alignment reduces heat generation and energy waste, delivering cost savings and compliance with efficiency programs. Application: energy-intensive drives in milling, pumping plants, and material handling. Feature → Business Impact → Application: Regreasable bearings and robust mechanical design lower maintenance frequency and extend motor life. Application: remote sites and high-cycle operations. Feature → Business Impact → Application: Direct On Line starting and a compact footprint ease installation and startup, cutting commissioning time and enabling quick scale-up in line-side installations. Application: new lines and retrofits where space and speed of deployment matter. These features, combined with CSA | UR certification and standard mounting options, support reliable performance in regulated facilities while enabling scalable automation strategies across multiple skus and supplier ecosystems.
