ABB 7BIDNM2334T AC Inverter / Vector Duty - IE3 Premium
Part Number: 7BIDNM2334T
Quick Summary
ABB 7BIDNM2334T is an AC inverter / vector duty drive for 3-phase motors in industrial automation applications. It delivers precise speed and torque control across demanding loads, from conveyors to pumps and fans. This solution helps maintenance teams reduce energy waste and optimize process stability in variable-speed applications, especially where startup spikes and load fluctuations occur. Designed for 60 Hz operation with 230/460 V capability, it aligns with modern standards and factory floor requirements. Key certifications include IE3 premium efficiency, CSA and UR safety approvals, and a robust TENV enclosure, providing reliability in typical plant environments. By pairing high-performance control with compact footprint, it supports lean procurement and lower total cost of ownership.
Product Information
Extended Description

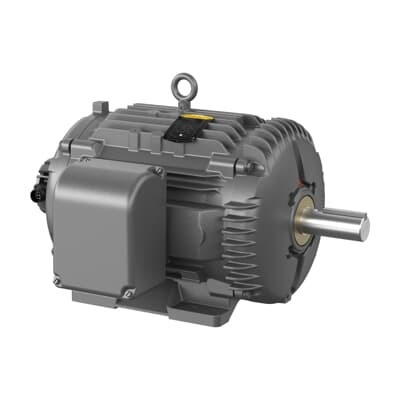

7BIDNM2334T ABB: AC Inverter / Vector Duty 20 Hp 230 V (IDNM2334T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1780RPM,3PH,60HZ,284T,1056M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6311, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDNM2334T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
10LYF681: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
IDNM2334T
Gross Volume
14448.906 inÂł
Gross Weight
406 lb
IC Class
TENV
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
20HP,1780RPM,3PH,60HZ,284T,1056M,TENV,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
4000 r/min
Medium Description
AC Inverter / Vector Duty, 20 HP, 1800 RPM, Frame Size 284T, Standard Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (IDNM2334T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
77 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
406 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
52 A | 26 A
Rated Efficiency
93 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.88 in
Short Description
20 HP, 1800 RPM, Frame Size 284T, Standard, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101106
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 20 HP output with 1780 rpm nominal speed enables high power density and smooth ramping, improving process control on conveyors and pumps. This translates to reduced cycle times and more consistent product handling. Application: Food & beverage lines, packaging, and general manufacturing where precise motor control matters. Feature → Business Impact → Application: IE3 premium efficiency and a rated efficiency around 93% reduce energy waste during variable-speed operation, delivering measurable energy cost savings across long-running lines. Application: Pumping stations and fans in HVAC or process cooling where operating efficiency is a top priority. Feature → Business Impact → Application: Enclosure Type TE N V (TENV) and a robust 284T frame with a 1.88 in shaft support deliver reliable performance in standard plant environments, lowering unplanned downtime. Application: Heavy-duty machines and presses in metalworking or material handling. Feature → Business Impact → Application: Direct On Line starting and 3-phase, 60 Hz capability with 230/460 V input provides straightforward integration with existing electrical systems, reducing commissioning time. Application: Material handling, mixers, and compressors where quick start capability matters. Feature → Business Impact → Application: Compact mounting (foot mounted, horizontal, F1) and a synchronized speed range up to 4000 r/min support retrofit projects and space-constrained installations. Application: Retrofit drives for aging equipment in factories aiming to improve energy efficiency without major rework. Feature → Business Impact → Application: CSA | UR certification and NEMA Design Code A ensure regulatory compliance and compatibility with safety standards in North American facilities. Application: Any regulated manufacturing environment requiring certified electrical components.
