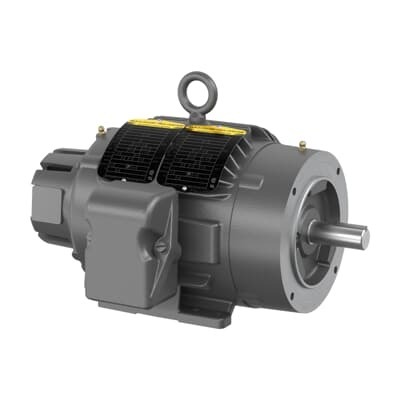

ABB 7BIDNM3587T AC Inverter / Vector Duty - IE3 Premium
Part Number: 7BIDNM3587T
Quick Summary
ABB 7BIDNM3587T is an AC inverter / vector duty drive engineered for precise motor control in industrial automation and manufacturing lines. It addresses common challenges such as torque variability, energy waste, and retrofit risk when upgrading to modern variable-speed drives on 60 Hz, 230/460 V three-phase systems. With IE3 Premium efficiency, CSA | UR certification, and a NEMA Design Code B profile, this drive delivers reliable performance across diverse environments. Its TENV enclosure and 145TC frame support robust installation and uptime in demanding applications, while the 2 HP rating and 1800 rpm base speed enable straightforward integration with existing machinery. This combination helps reduce total cost of ownership by enhancing efficiency and system compatibility across plant-wide motor control projects.
Product Information
Extended Description
7BIDNM3587T ABB: AC Inverter / Vector Duty 2 Hp 230 V (IDNM3587T)
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1755RPM,3PH,60HZ,143TC,0534M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDNM3587T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
05LYE534: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Iron
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
IDNM3587T
Gross Volume
3496.049 inÂł
Gross Weight
67 lb
IC Class
TENV
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
2HP,1755RPM,3PH,60HZ,143TC,0534M,TENV,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
AC Inverter / Vector Duty, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (IDNM3587T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
79 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
67 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.4 A | 2.7 A
Rated Efficiency
86.50 %
Rated Speed
1755 r/min
Replaced Product ID (OLD)
7B05E534X544G1
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101106
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: 2 HP, 3-phase drive with 230/460 V input supports flexible installation across common industrial power networks. Business Impact: enables smooth acceleration, improved torque control, and reduced startup surges for load profiles typical of conveyors, pumps, and fans. Application: ideal for manufacturing lines requiring reliable variable-speed control. Feature: IE3 Premium efficiency reduces energy losses and heat generation. Business Impact: lowers operating costs, extends component life, and reduces cooling demands in continuous-duty applications. Application: long-running processes such as material handling and process automation benefit from lower total cost of ownership. Feature: Vector duty control enables precise torque and speed management under varying loads. Business Impact: minimizes process variability, improves product quality, and reduces mechanical wear. Application: critical in packaging, metal forming, or automated assembly where consistent performance matters. Feature: TENV enclosure with 145TC frame and C-Face mounting simplifies installation and protects electronics. Business Impact: supports quick retrofits and stable alignment with standard motor bases. Application: convenient for upgrades in retrofit projects and new line equipment. Feature: Regreasable bearings and robust mechanical design withstand 40 °C ambient and up to 1000 m altitude. Business Impact: lowers maintenance intervals and enhances uptime in harsh environments. Application: suitable for outdoor or high-temperature plant areas. Feature: CSA | UR certification and NEMA Design Code B alignment ensure regulatory compliance and compatibility with common industry specifications. Business Impact: reduces qualification cycles and accelerates procurement for regulated sectors. Application: essential for safety-critical equipment and compliant motor control systems.
Get a Quick Quote for a ABB 7BIDNM3587T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BIDNM3587T?
Enquire Now
FAQs
The drive uses a C-Face drive-end and is compatible with horizontal mounting and standard foot-mounted bases designed for 145TC frame motors. This alignment simplifies retrofits and ensures stable alignment with existing Baldor-style motors, reducing installation time and vibration during operation.
Key specs include a 2 HP, 3-phase drive with 230/460 V input, 60 Hz operation, rated speed around 1755 rpm with a base speed of 1800 rpm, and maximum speed up to 2700 rpm. The unit offers a starting profile suitable for direct-on-line starts and a rated current of approximately 5.4 A (2.7 A secondary), supporting reliable performance across typical industrial loads.
Yes. The vector-duty control, 2 HP rating, and 60 Hz operation are tailored for continuous-duty environments. Its 1800 rpm base speed and 145TC frame support reliable, long-term operation with smooth acceleration and torque management in conveyors and pump systems.
The drive is IEC-based with IE3 Premium efficiency and is CSA | UR listed, reflecting strong regulatory compliance. A NEMA Design Code B profile further guides motor compatibility and performance expectations, simplifying qualification for regulated industries and safe integration with standard equipment.
Maintenance benefits include regreasable bearings and a robust TENV enclosure that reduces service intervals and protects internal components. Financially, energy savings from IE3 efficiency, extended motor life, and lower downtime contribute to a favorable ROI, especially in continuous-running lines such as conveyors and pumping stations.
