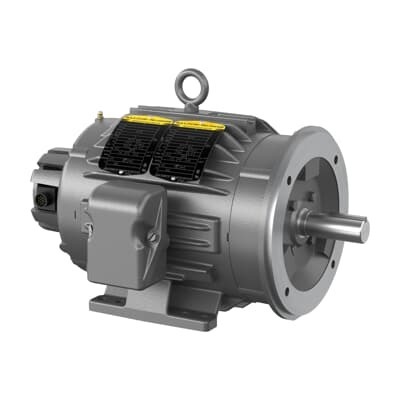

ABB IDNM3665T AC Inverter / Vector Duty - IE3
Part Number: 7BIDNM3665T
Quick Summary
ABB IDNM3665T is an AC inverter / vector duty drive paired with a 5 HP, 3‑phase motor designed for continuous operation in conveyors, pumps and machine tools. This combination delivers precise speed control, smooth torque ramping, and reliable performance under varying load conditions. If you’re battling speed fluctuations, energy waste, or complex drive PLC integration, this solution provides a streamlined path to stable motion and lower operating costs. The assembly carries CSA and UR certifications for North American compliance and is rated for 60 Hz service with a TENV enclosure. With a 184TC frame and C‑face mounting, it fits neatly into existing footprints while supporting scalable automation projects.
Product Information
Extended Description
7BIDNM3665T ABB: AC Inverter / Vector Duty 5 Hp 230 V (IDNM3665T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1760RPM,3PH,60HZ,184TC,0640M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDNM3665T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
06LYF551: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
IDNM3665T
Gross Volume
5274.135 in³
Gross Weight
116 lb
IC Class
TENV
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
5HP,1760RPM,3PH,60HZ,184TC,0640M,TENV,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
AC Inverter / Vector Duty, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (IDNM3665T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
80 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
116 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.2 A | 6.6 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101106
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 5 HP, 1760 r/min nominal output enables strong torque at drive speeds, delivering improved process control and reduced slip in feeders and pumps. This translates to higher throughput and lower waste in packaging lines and material handling. Feature → 230 V / 460 V voltage rating and 3‑phase, 60 Hz operation provide flexible electrical sourcing; the same equipment can be deployed across North American and international facilities, simplifying procurement and inventory management. Feature → IE3 premium efficiency reduces energy consumption by design, delivering measurable cost savings over motor runtimes in continuous duty applications such as conveyors and cooling fans. Feature → 184TC frame, C‑Face mounting, and foot-mounted base type ease installation and retrofits, enabling quick alignment with existing drive trains and reducing commissioning time. Feature → TENV enclosure and insulation class H enhance reliability in warm, industrial environments, supporting longer service intervals and lower maintenance costs. Feature → Direct On Line starting capability minimizes starter hardware and startup current, helping protect feeders and soft starters while enabling rapid line throughput. Feature → Synchronous speed 1800 r/min / Rated speed 1760 r/min with a 4-pole design provides predictable performance for precision machines and process control loops. Feature → Shaft diameter of 1.13 in and shaft end details support straightforward coupling and alignment with standard mechanical components. These technical characteristics, combined with CSA/UR and NEMA design references, reduce lifecycle risk and improve total cost of ownership in automation projects.
