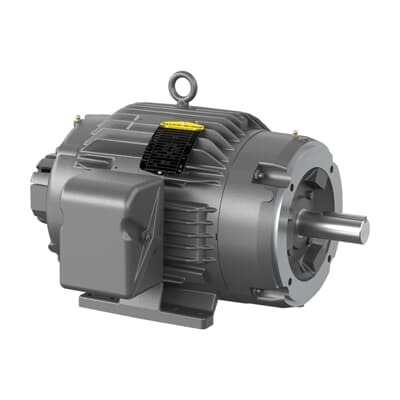

ABB IDNM3767T AC Inverter / Vector Duty - TENV IE3
Part Number: 7BIDNM3767T
Quick Summary
ABB IDNM3767T AC Inverter / Vector Duty provides precise 3-phase motor control for industrial automation applications like conveyors, pumps, and machine tools. Engineers often struggle with startup surges, energy waste, and downtime when integrating drives with legacy equipment. The unit carries CSA and UR certifications, IE3 premium efficiency, and a rugged TENV enclosure, supporting safe operation in demanding environments. With 230/460 V capability and 60 Hz compatibility, it aligns with standard US motor libraries, simplifying procurement and ongoing maintenance while delivering measurable energy and performance benefits.
Product Information
Extended Description
7BIDNM3767T ABB: AC Inverter / Vector Duty 5 Hp 230 V (IDNM3767T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1760RPM,3PH,60HZ,213TC,0736M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDNM3767T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
07LYJ135: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Iron
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
IDNM3767T
Gross Volume
10288.5 inÂł
Gross Weight
172.999 lb
IC Class
TENV
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
5HP,1760RPM,3PH,60HZ,213TC,0736M,TENV,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
AC Inverter / Vector Duty, 5 HP, 1800 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (IDNM3767T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
19 in
Product Net Height
19 in
Product Net Weight
172.999 lb
Product Net Width
28.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.4 A | 6.7 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.38 in
Short Description
5 HP, 1800 RPM, Frame Size 213Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101106
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → The drive handles 5 HP at 1760 RPM within a 213TC frame, 3-phase, 60 Hz, offering smooth velocity profiles. Business Impact → Reduces torque ripple and startup spikes, lowering wear on mechanicals and cutting energy bills. Application → Ideal for conveyors, pumps, and machine tools in moderate to heavy manufacturing settings. Feature → Regreasable bearings and long-life lubrication. Business Impact → Extends bearing life, minimizes unscheduled maintenance, and lowers total cost of ownership. Application → Suitable for continuous-duty loads in automated lines with frequent acceleration/deceleration. Feature → Direct On Line starting capability. Business Impact → Simplifies integration, reduces starter components, and shortens commissioning time. Application → Useful in new lines or retrofits where quick deployment is critical. Feature → TENV enclosure with high insulation (Insulation Class H). Business Impact → Improves reliability in warm, dusty factory floors and supports longer service intervals. Application → Harsh environments like packaging and material handling. Feature → IE3 premium efficiency with rated efficiency ~89.50%. Business Impact → Delivers energy savings over the motor’s life and supports regulatory compliance. Application → Beneficial for energy-conscious factories targeting ROI through lower operating costs. Feature → Compatible with 230 V / 460 V, 60 Hz operation and 213TC frame, C-face mounting. Business Impact → Facilitates plug-and-play integration with existing Baldor-Reliance or ABB motors and simplifies retrofits. Application → New installations and legacy-upgrade projects in automation lines.
