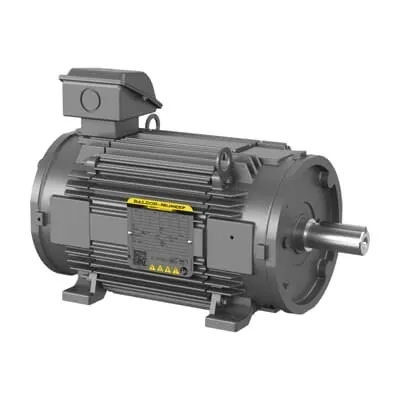

ABB 7BIDNRPM18074C AC VS Laminated Frame - CCSA US UR
Part Number: 7BIDNRPM18074C
Quick Summary
ABB 7BIDNRPM18074C AC motor is built for reliable variable-speed control in industrial conveyors and pumps. This model helps reduce energy waste and enforces consistent process speeds, addressing downtime and heat-related wear that plague heavy-duty drives. It meets UL/CSA, NEMA, and CCSA US | UR certifications, ensuring safe integration and regulatory compliance in diverse facilities. With a 60 Hz, 460 V three-phase input and a rugged TENV laminated frame, the RPMAC 7.5 HP motor delivers steady performance in demanding environments. Stocked across multiple warehouses, it offers fast availability, predictable lead times, and straightforward maintenance—supporting uptime goals and total-cost-of-ownership improvements for automation projects.
Product Information
Extended Description
7BIDNRPM18074C ABB: AC VS Laminated Frame - RPMAC 7.5 Hp 460 V (IDNRPM18074C)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.50HP,1775RPM,3PH,60HZ,1852C,TENV,
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
45BC02JPP30A, Ball
Bearing NDE
35BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDNRPM18074C
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TENV
Frame Material
Laminated
Frame Size
1852
Frequency (f)
60 Hz
Global Commercial Alias
IDNRPM18074C
Gross Volume
9550.625 in³
Gross Weight
95.254 kg
Horsepower Rating UL/CSA
7.500 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
7.50HP,1775RPM,3PH,60HZ,1852C,TENV,FT/2
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 7.5 HP, 1800/3600 RPM, Frame Size Fl1852Cz, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, (IDN
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL1852CZ
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
2
Order Multiple
1 piece
Output Power
7.5 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
29.5 in
Product Net Height
17.5 in
Product Net Weight
95.254 kg
Product Net Width
18.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
11 A
Rated Speed
1775 r/min | 3545 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800/3600 RPM, Frame Size Fl1852Cz, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature: 3-phase 460 V operation at 60 Hz; Business Impact: Standardized power compatibility reduces wiring changes and integration risk; Application: Conveyor belts, pumps, and machine tools in 3-phase automation circuits. The result is quicker commissioning and lower startup downtime. Feature: 7.5 HP with rated speeds of 1775 r/min and 3545 r/min; Business Impact: Broad speed range supports multiple process profiles and load conditions, boosting throughput with predictable torque; Application: Mixed-load line drives and multi-speed conveyors in packaging and material handling. Feature: TENV (Totally Enclosed Non-Ventilated) enclosure; Business Impact: Robust protection in ambient up to 40 °C reduces heat-related derating and maintenance needs; Application: Harsh factory floors and outdoor-adjacent equipment where dust and temperature vary. Feature: Frame FL1852CZ with C-Face drive end flange and foot-mounted base; Business Impact: Easy mounting and drive compatibility lowers installation time and retrofit risk; Application: Replacement motors in existing Baldor-Reliance compatible frames across OEM lines. Feature: Frame material Laminated and 1852Cz dimension; Business Impact: High-strength build supports long life in continuous duty environments; Application: Continuous-process drives in conveyors, mixers, and fans. Feature: Rated Current 11 A and 3-phase configuration; Business Impact: Predictable electrical loading simplifies wiring schematics and circuit protection; Application: New installations and drop-in replacements with minimal electrical rework. Stocked at multiple warehouses enables faster procurement and warranty support, contributing to lower total cost of ownership and improved uptime.
Get a Quick Quote for a ABB 7BIDNRPM18074C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BIDNRPM18074C?
Enquire Now
FAQs
This motor is foot-mounted with a C-Face drive end flange and runs on a 3-phase, 60 Hz 460 V supply. It uses a FL1852CZ frame and is designed for horizontal mounting (F3) with a 1.38 in shaft diameter. These features enable straightforward replacement and compatibility with many existing drive systems.
Key specs include 7.5 HP output, rated speeds of 1775 r/min and 3545 r/min, 11 A nominal current, 60 Hz operation, and a frame size FL1852CZ. The motor is designed for continuous duty with a TENV enclosure to tolerate ambient temperatures up to 40 °C.
Yes. The RPMAC is a continuous-duty, 3-phase motor with a rugged laminated frame and TENV enclosure, suitable for conveyors and pumps in harsh factory environments. Its 460 V drive and 60 Hz operation ensure stable torque and consistent speed under long-running loads.
The motor carries UL/CSA certification, NEMA standards compliance, and CCSA US | UR approvals, providing regulatory assurance and safe system integration across U.S. and North American facilities.
Consider its no-brake configuration for simple drive integration, stock availability across major warehouses (reducing lead times), and 40 °C ambient tolerance. These factors shorten downtime, simplify replacement, and lower total cost of ownership over the motor’s service life.
