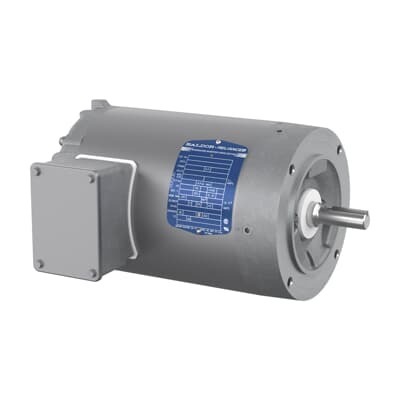

ABB 7BIDVSWDM3538 Washdown Motor - 3-Phase, CSA UR
Part Number: 7BIDVSWDM3538
Quick Summary
Washdown motor ABB 7BIDVSWDM3538 delivers reliable 0.5 HP performance for sanitary conveying in food processing and packaging lines. Operators struggle with washdown exposure, corrosion, and downtime that disrupts production. Built to CSA/UR safety standards, with a NEMA Design B profile and 60 Hz performance, this motor performs consistently in challenging environments. The stainless steel frame and TENV enclosure withstand frequent cleaning cycles, while the 56C frame and C-face mount simplify installation and retrofits. With fast lead times and stock at multiple warehouses, procurement teams gain reduced downtime and predictable maintenance budgets. This combination of rugged construction, regulatory compliance, and supply chain readiness translates to lower total cost of ownership for industrial facilities.
Product Information
Extended Description
7BIDVSWDM3538 ABB: Washdown Motor 0.5 Hp 230 V (IDVSWDM3538)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1775RPM,3PH,60HZ,56C,3514M,TEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDVSWDM3538
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYS639: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
IDVSWDM3538
Gross Volume
2110.969 inÂł
Gross Weight
32 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
.5HP,1775RPM,3PH,60HZ,56C,3514M,TENV,F1
Lubrication
For life
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
Paint-Free Washdown, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (IDVSWDM3538)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
62 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
32 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.8 A | 0.9 A
Rated Efficiency
78.20 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B35S639G069G2
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
N
Voltage Rating
230 V | 460 V
Feature: Paint-free washdown design with a stainless steel frame and TENV enclosure. Business Impact: Superior corrosion resistance and easier sanitation cycles reduce maintenance interruptions. Application: Food processing, beverage, and pharmaceutical lines where frequent cleaning is required. Feature: 0.5 HP, 1770 r/min rated speed, 60 Hz, 3-phase, 230/460 V. Business Impact: Reliable torque and straightforward electrical integration cut installation time and operating costs. Application: Conveyor and pump systems in continuous-process plants. Feature: 56C frame with C-face mounting and footless base. Business Impact: Compact footprint and versatile mounting options enable retrofits in tight machines and modular lines. Application: Horizontal conveyors and compact packaging equipment where space is limited. Feature: Enclosure Type TENV and lubrication listed as 'for life'. Business Impact: Enhanced protection against contaminants and reduced maintenance intervals, improving uptime. Application: Washdown environments with frequent high-pressure cleaning. Feature: Sealed bearings (6205) and high temperature insulation (H). Business Impact: Long bearing life and reliable operation under demanding ambient conditions. Application: High-cycle production lines in sanitary environments. Feature: CSA | UR certifications and NEMA Design B. Business Impact: Regulatory compliance reduces risk during audits and ensures compatibility with standard industrial controls. Application: Industries with rigorous safety standards and qualified supplier requirements. Feature: Lead time and stock accessibility (0 day lead time, multiple warehouses). Business Impact: Fast fulfillment and lower spare parts inventory costs. Application: Just-in-time manufacturing and critical spare planning in manufacturing plants.
Get a Quick Quote for a ABB 7BIDVSWDM3538
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BIDVSWDM3538?
Enquire Now
FAQs
Yes. The motor is rated for 230 V / 460 V, 3-phase operation at 60 Hz and uses a 56C frame with C-face mounting for flexible horizontal installation. For retrofit projects, verify mounting patterns and shaft alignment; the footless base simplifies integration in compact spaces.
Key specs include 0.5 HP output, rated speed about 1770 r/min (Synchronous 1800 r/min), rated current around 1.8 A, and a power factor near 62%. It operates at 60 Hz with a 230/460 V dual-voltage rating, making it suitable for standard industrial power supplies.
Absolutely. The paint-free stainless steel frame and TENV enclosure provide corrosion resistance and protection against washdown cleaning. This makes it well-suited to sanitary conveyors, packaging lines, and other equipment in moisture-prone facilities.
The motor carries CSA and UR certifications and follows NEMA Design B guidelines, aligning with common safety and performance requirements in industrial settings. This supports regulatory compliance in many North American facilities handling food, beverages, and pharmaceuticals.
Lubrication is listed as 'for life' with sealed bearings (6205), reducing maintenance intervals. Its robust build and fast lead times improve uptime and spare-part planning, lowering total cost of ownership and enabling reliable long-term operation in continuous production environments.
