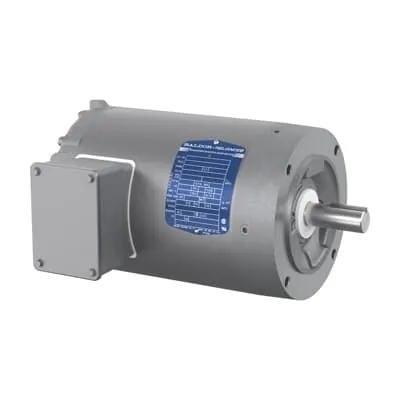

ABB 7BIDVSWDM3546T Washdown Motor - 1HP 60Hz CSA/UR
Part Number: 7BIDVSWDM3546T
Quick Summary
ABB 7BIDVSWDM3546T washdown motor delivers 1 HP reliable drive for washdown duty in food and pharma lines. Industrial environments demand motors that resist washdowns, prevent corrosion, and minimize downtime. This unit carries CSA and UR approvals, delivers premium efficiency, and operates at 60 Hz in a rugged TENV enclosure. Built for continuous duty in demanding environments, it leverages a stainless steel frame and 143TC size to withstand high pressure cleaning. With 3-phase operation and a 230/460 V voltage rating, the motor supports straightforward integration into existing plant networks. The compact 143TC frame and C face mounting simplify installation, offering a strong total cost of ownership advantage for OEMs and maintenance teams.
Product Information
Extended Description
7BIDVSWDM3546T ABB: Washdown Motor 1 Hp 230 V (IDVSWDM3546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143TC,3522M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDVSWDM3546T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYSS642: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
IDVSWDM3546T
Gross Volume
2110.969 in³
Gross Weight
40 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
1HP,1770RPM,3PH,60HZ,143TC,3522M,TENV,F1
Lubrication
For life
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Paint-Free Washdown, 1 HP, 1800 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (IDVSWDM3546T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
40 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.34 A | 1.67 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
M
Voltage Rating
230 V | 460 V
Stainless steel frame and 143TC size deliver corrosion resistance and mechanical durability for washdown applications, reducing maintenance cycles and extending motor life. This translates to lower total cost of ownership and fewer unplanned downtime events on conveyors and packaging lines. The 1 HP, 60 Hz, 230/460 V 3-phase design enables reliable torque delivery at normal production speeds, supporting efficient line throughput and easier integration with existing drive systems. Premium efficiency at 85.50 percent reduces energy costs over the motor life, a meaningful benefit for continuous duty operations in food processing and pharma environments. The TE N V enclosure type provides protection against washdowns and cleaning chemicals while maintaining airflow and thermal stability, minimizing overheating risk. C face mounting and a footprint aligned with 143TC frames simplify retrofits and field service, lowering installation time and service disruption.
Get a Quick Quote for a ABB 7BIDVSWDM3546T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BIDVSWDM3546T?
Enquire Now
FAQs
Plan for a horizontal mounting position with C-face drive end flange and 143TC frame. Use compatible footless mounting or support structures, ensure proper alignment with 230/460 V supply, and verify direct on line startup capability. The 0 day lead time and stock at multiple warehouses aid rapid deployment.
Yes. The TE N V enclosure plus stainless steel frame provides corrosion resistance and protection against frequent washdowns. It supports continuous operation in high pressure cleaning environments with minimal maintenance and easy cleaning protocols.
It is a 3 phase motor rated at 1 HP with 60 Hz operation and a 230/460 V voltage rating. The rated efficiency is 85.50 percent, classifying it as premium efficiency. Rated current is 3.34 A at 230 V or 1.67 A at 460 V, enabling accurate electrical planning.
The unit carries CSA and UR certifications, supports NEMA style design, and uses a premium efficiency configuration. Insulation is rated H, and the motor is designed for continuous duty in hygienic washdown environments, aligning with industry supply chain and regulatory expectations.
The combination of 1 HP output, premium efficiency, stainless steel frame, and TENV enclosure reduces energy and maintenance costs while extending service intervals. Quick stocking at multiple warehouses and 0 day lead time improve uptime and total cost of ownership for OEMs and maintenance teams.
