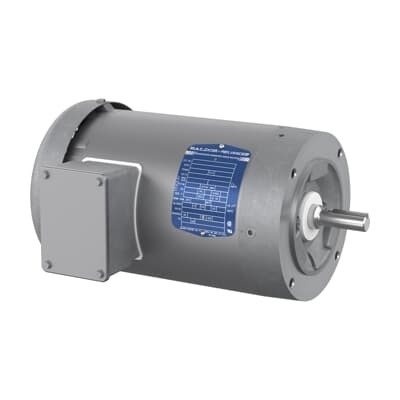

ABB 7BIDVSWDM3558 Motor - IE3 Premium Efficiency
Part Number: 7BIDVSWDM3558
Quick Summary
The 7BIDVSWDM3558 motor is a washdown-certified 2 HP, 230 V three-phase drive for hygienic manufacturing lines. In high-washdown environments, corrosion resistance and TEFC enclosure minimize downtime and maintenance. It meets IE3 Premium efficiency and CSA/UR safety certifications, with a TEFC enclosure designed for demanding process lines. The 56C frame, C-face mounting, and footless base simplify installation in tight spaces, while direct-on-line starting reduces control hardware. With 60 Hz operation and 230/460 V compatibility, it integrates with common plant electrical systems, helping owners reduce energy use and inventory while improving uptime.
Product Information
Extended Description
7BIDVSWDM3558 ABB: Washdown Motor 2 Hp 230 V (IDVSWDM3558)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,56C,3528M,TEFC
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDVSWDM3558
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYS640: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
IDVSWDM3558
Gross Volume
2110.969 inÂł
Gross Weight
45 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
2HP,1760RPM,3PH,60HZ,56C,3528M,TEFC,F1,N
Lubrication
For life
Made To Order
No
Maximum Speed
4500 r/min
Medium Description
Paint-Free Washdown, 2 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (IDVSWDM3558)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
75 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
45 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.8 A | 2.9 A
Rated Efficiency
86.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35S640G073G1
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
2 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and stainless steel frame. Business Impact: Superior corrosion resistance and washdown durability reduce maintenance costs and downtime in food, beverage, and pharmaceutical environments. Application: Ideal for hygienic production lines where frequent cleaning is required and downtime is costly. Feature: 56C frame with C-face mounting and horizontal orientation. Business Impact: Streamlined installation and compatibility with existing equipment footprints, enabling quicker line upgrades and simpler service access. Application: Conveyor systems and process skids in compact spaces benefit from a plug-and-play footprint. Feature: IE3 Premium efficiency rating. Business Impact: Lower energy consumption and reduced operating costs over the motor’s life, enhancing total cost of ownership. Application: Continuous-duty mixing, pumping, and material handling on energy-sensitive lines. Feature: 230/460 V dual voltage with 60 Hz operation. Business Impact: Broad electrical compatibility supports retrofits and new builds without costly transformers or rewiring. Application: Plants upgrading lines or consolidating spare parts across facilities can standardize motors across sites. Feature: Sealed bearings (6205) and lubrication for life. Business Impact: Extended bearing life, lower maintenance intervals, and predictable performance in washdown environments. Application: Filtration, packaging, and processing equipment subject to frequent washdowns. Feature: Direct On Line starting. Business Impact: Simplified motor control reduces startup components and improves reliability. Application: Line start-stop cycles on packaging and bottling lines with minimal drive hardware.
