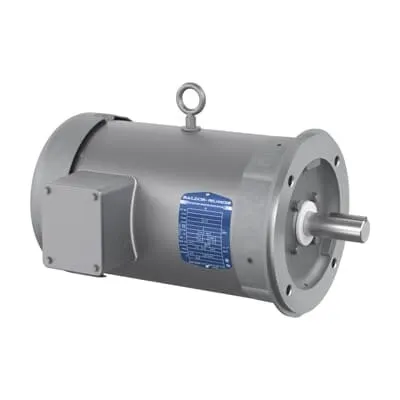

ABB 7BIDVSWDM3611T Washdown Motor - 3HP, 60Hz, TEFC, CSA/UR
Part Number: 7BIDVSWDM3611T
Quick Summary
ABB 7BIDVSWDM3611T is a washdown motor engineered for reliable performance in demanding sanitary environments such as food processing and pharmaceutical processes. This design addresses corrosion, ingress, and downtime by leveraging a stainless steel frame, a TEFC enclosure, and a robust 182TC frame that withstands washdown cycles. Certified for NEMA standards and IE3 premium efficiency, it combines regulatory compliance with energy savings. The unit is readily available from multiple U.S. and international warehouses, ensuring fast delivery for time-sensitive projects. For engineers and maintenance teams, this motor delivers consistent torque, reduced maintenance, and a clear path to compliance in regulated facilities, while supporting ease of installation and integration with standard 3-phase power systems.
Product Information
Extended Description
7BIDVSWDM3611T ABB: Washdown Motor 3 Hp 230 V (IDVSWDM3611T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182TC,3636M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDVSWDM3611T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYK606: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
IDVSWDM3611T
Gross Volume
5274.135 inÂł
Gross Weight
80 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
3HP,1760RPM,3PH,60HZ,182TC,3636M,TEFC,F1
Lubrication
For life
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
Paint-Free Washdown, 3 HP, 1800 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (IDVSWDM3611T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
182TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
76 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
80 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The washdown-specific design features a stainless steel frame and TEFC enclosure, delivering enhanced corrosion resistance and hygiene in washdown environments. This reduces maintenance frequency and downtime, translating to higher overall equipment effectiveness in food and beverage lines and pharmaceutical packaging. Application: Use in sanitary conveyors, mixers, and processing equipment where frequent cleaning is required. Feature → Business Impact → Application: 3 HP rating with 1760 r/min on 60 Hz and 230/460 V three-phase supply enables efficient, reliable operation with readily available power sources. This supports energy-efficient operation and smooth control in continuous-duty applications like pasteurizers and scrub-down stations. Application: Suitable for general purpose, continuous-duty processes that demand consistent speed with minimal power loss. Feature → Business Impact → Application: TEFC enclosure combined with a 182TC frame and C-face mounting simplifies installation and alignment, reducing commissioning time and enabling secure mounting in vertical or horizontal layouts. Application: Ideal for compact plant layouts and retrofit projects where footprint and alignment are critical. Feature → Business Impact → Application: IE3 premium efficiency designation and NEMA design B characteristics offer regulatory compliance and improved energy performance, reducing operating costs over the motor’s life. Application: Essential for facilities pursuing energy audits, sustainability goals, and regulator-approved installations. Feature → Business Impact → Application: Direct On Line starting and three-phase operation provide straightforward wiring and robust startup behavior, minimizing downtime during startup and integration with existing electrical infrastructure. Application: Appropriate for new lines or upgrades in automation cells requiring immediate torque and rapid acceleration. Feature → Business Impact → Application: Stocked at multiple warehouses and US origin support quick procurement and reduced lead times, accelerating project timelines and maintenance schedules. Application: Critical for time-sensitive builds and spare-part availability in regional plants. Feature → Business Impact → Application: Lubrication listed as “For life” reduces routine maintenance, lowering lifecycle costs and preventive maintenance overhead. Application: Valuable for equipment in remote facilities or high-demand cycles where maintenance windows are limited.
Get a Quick Quote for a ABB 7BIDVSWDM3611T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BIDVSWDM3611T?
Enquire Now
FAQs
Yes. This model is specified for 230 V or 460 V three-phase operation at 60 Hz, making it suitable for standard industrial power distribution and easy integration with common motor starters and VFDs.
It excels in sanitary environments such as food processing, beverage production, and pharmaceutical equipment where frequent washdowns occur. The stainless steel frame and TEFC enclosure support hygiene, corrosion resistance, and reliable performance in wet conditions.
The motor is CSA | UR certified and aligns with NEMA standards, with IE3 premium efficiency. These credentials support regulatory compliance and energy performance in regulated facilities.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses, offering fast fulfillment and reduced project delays for urgent deployments.
Leverage the 182TC frame with C-face mounting for straightforward alignment, Direct On Line starting for simple wiring, and a TEFC enclosure that withstands washdown cycles. The design also uses a life-time lubrication approach to minimize maintenance downtime.
