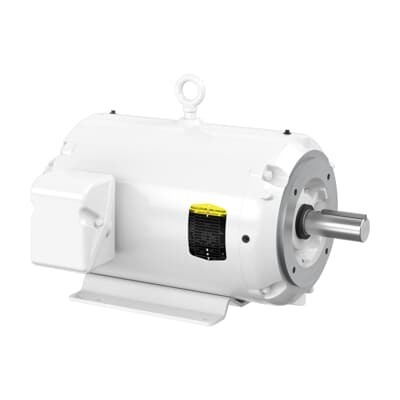

ABB IDWNM22937T Washdown Motor - 7.5 HP, 60 Hz, TENV
Part Number: 7BIDWNM22937T
Quick Summary
Washdown motor ABB IDWNM22937T delivers robust, cleanable drive power for high-hygiene applications in manufacturing and packaging. This motor addresses common pain points like corrosion, frequent washdown cycles, and downtime by using sealed construction and life-long lubrication. It carries CSA and UR certifications, Premium Efficiency performance, and a TENV enclosure for harsh washdown environments. For OEMs and maintenance teams, the combination of US origin, broad stock availability, and direct-on-line starting reduces procurement complexity and startup time, delivering predictable performance. The result is improved line reliability, lower total cost of ownership, and safer operation in food processing and pharmaceutical lines. These features support scalable automation and retrofit projects with confidence.
Product Information
Extended Description
7BIDWNM22937T ABB: Washdown Motor 7.5 Hp 230 V (IDWNM22937T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,254TC,3948M,
Altitude
1000 m
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6309, Sealed Bearing
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDWNM22937T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
39LYR099: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
IDWNM22937T
Gross Volume
14448.906 inÂł
Gross Weight
128.367 kg
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
7.5HP,1770RPM,3PH,60HZ,254TC,3948M,TENV
Lubrication
For life
Made To Order
No
Maximum Speed
5000 r/min
Medium Description
White Washdown, 7.5 HP, 1800 RPM, Frame Size 254Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (IDWNM22937T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
84 %
Product Name
White Washdown
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
128.367 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.8 A | 8.9 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Short Description
7.5 HP, 1800 RPM, Frame Size 254Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 7.5 HP, 60 Hz design with 230/460 V capability and a 254TC frame reduces SKU fragmentation and enables plug-and-play deployment on standard conveyors and washdown equipment, speeding installation and reducing stocking complexity for OEMs. This translates into shorter project timelines and lower installation costs in automated lines. Feature → Business Impact → Application: The TENV enclosure provides splash-resistant protection suitable for wet environments, significantly lowering corrosion risk and maintenance intervals while complying with core hygiene standards. Ideal for food processing, beverage, and pharmaceutical lines where washdown cycles are frequent. Feature → Business Impact → Application: Direct On Line starting simplifies integration with existing control systems, reducing starter components and maintenance needs, while Premium Efficiency performance (91.70%) and a fair PF (84%) improve overall energy utilization and reliability on continuous-duty applications like packaging and material handling. Feature → Business Impact → Application: Sealed bearings (6309, 6208) and lubrication for life cut maintenance labor and downtime, delivering predictable service cycles in high-pressure washdown scenarios. Feature → Business Impact → Application: The foot-mounted, C-face drive end flange with a 1.63 in shaft diameter and 254TC frame supports versatile mounting and straightforward retrofit on existing systems, minimizing downtime during upgrades. Feature → Business Impact → Application: Stocked in multiple warehouses (US, China, etc.) with 0-day lead time improves procurement velocity and project planning for OEMs and maintenance teams, ensuring rapid availability during plant upgrades and preventive maintenance.
