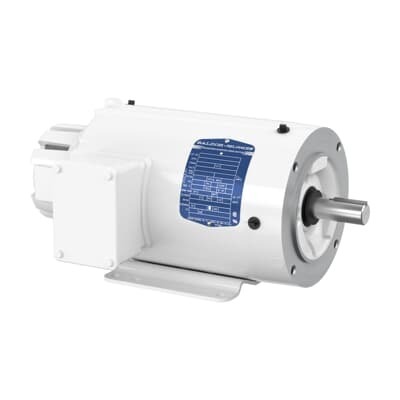

ABB 7BIDWNM3546T Washdown Motor - IE3 Premium Efficiency
Part Number: 7BIDWNM3546T
Quick Summary
ABB 7BIDWNM3546T washdown motor delivers 1 HP power for clean-in-place, washdown-ready applications. This design is built to endure moisture, corrosion, and frequent washdowns, helping minimize downtime and maintenance costs. It carries CSA | UR listings and NEMA design B with a TENV enclosure, plus IE3 premium efficiency to reduce energy use in continuous operation. With a 143TC frame, C-face mounting, and 230/460 V 3-phase capability, it streamlines procurement and installation. For OEMs and service teams, this motor combines rugged reliability with easy integration into existing conveyors, pumps, and processing equipment, while supporting energy savings and long service life in demanding environments.
Product Information
Extended Description
7BIDWNM3546T ABB: Washdown Motor 1 Hp 230 V (IDWNM3546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143TC,3522M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDWNM3546T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYTT996: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
IDWNM3546T
Gross Volume
3496.049 in³
Gross Weight
41 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
1HP,1770RPM,3PH,60HZ,143TC,3522M,TENV,F1
Lubrication
For life
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
White Washdown, 1 HP, 1800 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (IDWNM3546T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.34 A | 1.67 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
M
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The washdown-ready TENV enclosure protects internal components from washdowns and moisture, improving uptime in food processing and beverage lines. This translates to lower maintenance intervals and reduced risk of corrosion, enhancing overall equipment reliability in sanitary environments. Feature → Business Impact → Application: The 143TC frame with foot-mounted, horizontal mounting, and C-face options simplifies retrofits and new installs, enabling quick alignment with existing drives and compact footprints in packaging systems. Feature → Business Impact → Application: 230/460 V, 3-phase, 60 Hz operation delivers flexibility for regional power standards while maintaining consistent torque and speed, supporting universal application across plants without extensive electrical changes. Feature → Business Impact → Application: Direct On Line starting and a rated speed of 1770 r/min (with 1 HP output) reduces initial hardware requirements and startup time, enabling cost-effective starter configurations on conveyors and mixers. Feature → Business Impact → Application: IE3 Premium Efficiency and a compact 1 HP profile reduce energy consumption and heat load, contributing to lower operating costs and easier compliance with efficiency targets in sanitary facilities. Feature → Business Impact → Application: Sealed bearings (6205) and robust shaft design support long service life under washdown cycles, minimizing unscheduled maintenance in pharmaceutical and biotech equipment. Feature → Business Impact → Application: CSA | UR listings and NEMA design B alignment provide regulatory confidence and standardized performance for OEMs, with 40 °C ambient and up to 1000 m altitude suitability for diverse manufacturing sites. This combination supports procurement efficiency and reduced total cost of ownership in applications like conveyors, mixers, and pumps in sanitary environments.
