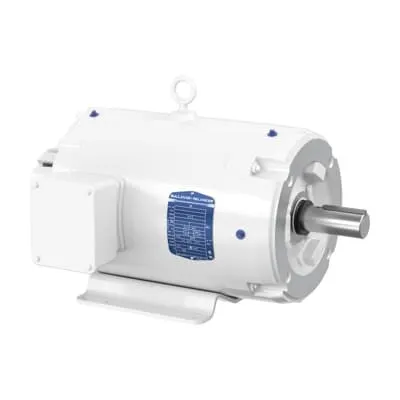

ABB IDWNM3707T Washdown Motor - 5 HP, 230/460 V, Premium
Part Number: 7BIDWNM3707T
Quick Summary
ABB IDWNM3707T washdown motor delivers reliable, high-efficiency operation for 3‑phase washdown environments such as food, beverage, and pharmaceutical lines. Engineers often confront corrosion, downtime, and maintenance challenges in harsh washdown zones, driving higher lifecycle costs. This motor carries CSA | UR certification and a NEMA-standard design with a TENV enclosure to meet strict safety and environmental requirements. It aligns with premium efficiency targets while supporting North American voltages, enabling easier procurement and lower energy bills. By selecting this model, maintenance teams gain longer bearing life, straightforward direct-on-line starting, and improved line uptime—delivering measurable reductions in total cost of ownership for high-demand production lines.
Product Information
Extended Description
7BIDWNM3707T ABB: Washdown Motor 5 Hp 230 V (IDWNM3707T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1770RPM,3PH,60HZ,213TC,3734M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IDWNM3707T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
37LYH312: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
IDWNM3707T
Gross Volume
5274.135 inÂł
Gross Weight
122 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
5HP,1770RPM,3PH,60HZ,213TC,3734M,TENV,F1
Lubrication
For life
Made To Order
No
Maximum Speed
4000 r/min
Medium Description
White Washdown, 5 HP, 1800 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (IDWNM3707T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
82 %
Product Name
White Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
122 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.4 A | 6.2 A
Rated Efficiency
89.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
5 HP, 1800 RPM, Frame Size 213Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature: 213TC frame with foot-mounted, C-Face mounting. Business Impact: Standardized footprint simplifies retrofit and field replacement, reducing downtime during maintenance. Application: Conveyor systems and processing lines in washdown environments benefit from quick, secure installation. Feature: 5 HP at 60 Hz (1770 r/min nominal, 1800 r/min synchronous). Business Impact: Adequate torque and speed for pump/mixer loads with reliable starting behavior, lowering start-up stress and energy use. Application: Pumps, mixers, and fans in food and beverage lines. Feature: Dual voltage 230/460 V 3-phase. Business Impact: Inventory optimization and flexible deployment across multiple plants, simplifying electrical design and procurement. Application: North American facilities with mixed voltage supply. Feature: Enclosure Type TENV and Insulation Class H. Business Impact: Enhanced protection in moist environments, enabling longer service life and reduced maintenance cycles. Application: Harsh washdown areas with elevated humidity. Feature: Premium Efficiency and NEMA Design Code B. Business Impact: Energy savings, lower heat generation, and compliance with high-performance motor standards. Application: Continuous-duty drives in automated lines. Feature: Sealed bearing 6307, Shaft 1.38 in. Business Impact: Reduced maintenance, longer life in dirty environments, and easier alignment during installation. Application: High-throughput packaging and processing machines. Feature: Direct On Line starting and 3-phase operation. Business Impact: Simplified commissioning, lower equipment counts, and reduced startup torque ripple. Application: Immediate readiness for line start-ups. These features collectively offer measurable uptime gains, lower running costs, and straightforward integration into existing ABB or third-party control systems.
