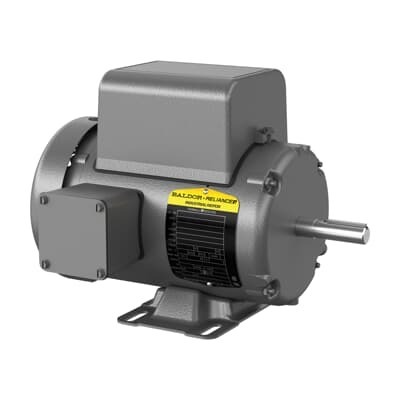

ABB IR3501M Farm Duty Motor - CSA UR, 1PH 60Hz TEFC
Part Number: 7BIR3501M
Quick Summary
ABB IR3501M Farm Duty Motor is a compact 0.33 HP single-phase motor designed for reliable performance on light conveyors, fans, and agricultural equipment. It delivers steady torque and 1725 RPM in a TEFC enclosure, suitable for dusty rural environments. With 0 day lead time and stock at multiple warehouses, maintenance teams can minimize downtime and expedite replacements. CSA and UR certifications support North American compliance, while a universal 115 V rating (and 56-frame footprint) simplifies retrofits. The design prioritizes straightforward installation, standard mounting, and predictable maintenance costs, empowering plant managers to sustain production schedules and reduce total cost of ownership in farming and light industrial applications.
Product Information
Extended Description
7BIR3501M ABB: Farm Duty Motor 0.33 Hp 115 V (IR3501M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1725RPM,1PH,60HZ,56,3414L,TEF
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IR3501M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
34LYS040: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
IR3501M
Gross Volume
2110.969 in³
Gross Weight
25 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
B
Invoice Description
.33HP,1725RPM,1PH,60HZ,56,3414L,TEFC,F1
Made To Order
No
Medium Description
Instant Reversing, 0.33 HP, 1800 RPM, Frame Size 56, Standard Mounting, 1 Phase, TEFC Enclosure, 115/208-230 V, 60 Hz (IR3501M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
60 %
Product Name
Instant Reversing
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
25 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6 A | 3.2 A | 3 A
Rated Efficiency
60 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.63 in
Short Description
0.33 HP, 1800 RPM, Frame Size 56, Standard, 1 PH, TEFC, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
115 V | 208 V | 230 V
Feature → Business Impact → Application: Foot-mounted 56-frame design enables quick retrofits into existing equipment footprints and reduces installation time for conveyors and fans. This simplifies retrofits and minimizes structure modifications, supporting faster deployment in agriculture lines and small processing setups. Feature → Business Impact → Application: TEFC enclosure provides robust protection against dust and moisture, lowering the risk of motor failure in dusty farm environments and improving uptime for packaging and storage conveyors. Feature → Business Impact → Application: 0.33 HP, 1725 RPM, 60 Hz performance delivers adequate torque for light-duty conveyors and equipment without oversizing drives, helping minimize energy use while maintaining stable flow in grain handling and small-scale processing. Feature → Business Impact → Application: 115 V/208-230 V single-phase capability and direct-on-line start simplify electrical installation, reducing wiring complexity and enabling rapid commissioning in maintenance-heavy facilities. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time reduces downtime during maintenance outages and emergency replacements for farm equipment and processing lines. Feature → Business Impact → Application: CSA and UR certifications ensure regulatory compliance and traceability for North American projects, simplifying procurement and audit readiness in agricultural facilities.
