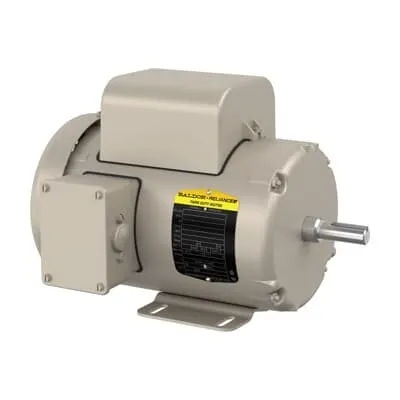

ABB IR3510M Farm Duty Motor - CSA UR
Part Number: 7BIR3510M
Quick Summary
ABB IR3510M Farm Duty Motor powers 1 HP at 230 V for agricultural equipment. Downtime and long lead times hurt productivity, especially in harvest or irrigation cycles. CSA | UR certifications ensure safety compliance, while TEFC enclosure guards against dust and moisture in harsh farm environments. Its 56-frame, TEFC design, and direct-on-line starting simplify installation and wiring, cutting commissioning time. Designed for ambient temperatures up to 40 C and elevations around 1000 m, it supports rugged field conditions. Stocked in multiple US warehouses with zero-day lead times, this motor delivers reliable uptime and predictable maintenance costs for conveyors, pumps, fans, and other farm-duty applications.
Product Information
Extended Description
7BIR3510M ABB: Farm Duty Motor 1 Hp 230 V (IR3510M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,1PH,60HZ,56,3528L,TEFC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
IR3510M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
L
Dimension Diagram
35LYK634: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
IR3510M
Gross Volume
2110.969 inÂł
Gross Weight
40 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1750RPM,1PH,60HZ,56,3528L,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
Instant Reversing, 1 HP, 1800 RPM, Frame Size 56, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (IR3510M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
70 %
Product Name
Instant Reversing
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
40 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.2 A
Rated Efficiency
65 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
K
Voltage Rating
230 V
Feature: TEFC enclosure and steel frame provide robust protection for dusty farm environments. Business Impact: Reduces wear, minimizes failure modes, and lowers maintenance costs over the motor's life. Application: Ideal for belt conveyors, irrigation pumps, and ventilation fans in barns and greenhouses. Feature: 1-phase, 230 V, 60 Hz electrical configuration with a 56 frame and 4 poles. Business Impact: Simplified wiring, straightforward panel integration, and reliable Direct On Line starting. Application: OEM equipment and field-installed rigs in agricultural operations. Feature: Direct On Line starting and stock availability with 0 day lead time. Business Impact: Faster deployment, reduced project timelines, improved ROI. Application: Rapid replacement and scalable farm automation projects. Feature: Insulation Class F, Service Factor 1.15, Power Factor 70%, Rated Speed 1725 r/min, Synchronous Speed 1800 r/min. Business Impact: Efficient operation with design margin under peak loads, ensuring dependable performance. Application: Grain handling, feed processing, and milking/handling stations. Feature: Lubrication Regreasable; Bearing 6205; Shaft 0.63 in; Mounting Foot Mounted, Horizontal, F1. Business Impact: Lower maintenance intervals and easier retrofit into existing equipment. Application: Retrofit scenarios and new installations in farm-duty systems.
Get a Quick Quote for a ABB 7BIR3510M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BIR3510M?
Enquire Now
FAQs
The IR3510M is designed as a Foot Mounted motor with Horizontal mounting in F1 configuration. This simplifies retrofit into existing frames and reduces alignment time during installation on conveyors, pumps, and fans.
It operates at 230 V, 60 Hz, with 1 HP output, 1725 r/min (4P), 6.2 A nominal current, and a 70% power factor. Direct On Line starting minimizes control hardware and wiring complexity.
Yes. Its farm-duty design, TEFC enclosure, and 56-frame size are optimized for dusty, humid environments. It also features regreasable bearings and robust insulation for continuous operation in agricultural settings.
The IR3510M carries CSA and UR certifications, which support safety and regulatory compliance for industrial and agricultural installations in North America.
Regreasable bearings and a durable F-class insulation reduce maintenance frequency. With stock availability (0-day lead time) and strong uptime in farm environments, you can expect faster deployment and a lower total cost of ownership.
