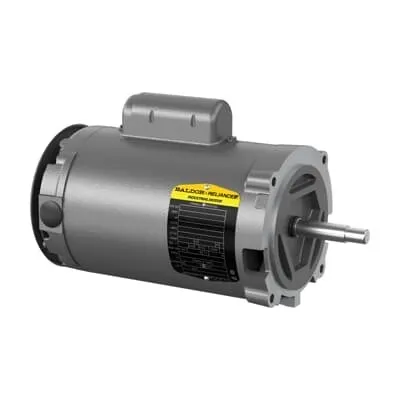

ABB 7BJL1306A Pump Motor - 0.75 HP 115 V - CSA/UR
Part Number: 7BJL1306A
Quick Summary
ABB 7BJL1306A Pump motor drives reliable pumping for water-handling needs such as small wells, irrigation, and light processing. It’s designed to simplify service and reduce downtime with straightforward installation and common controls. Certifications include CSA and UR listings for safety, and a NEMA-aligned design to ensure compatibility with standard panels and drives. With USA origin and stock across key warehouses, you gain fast fulfillment and predictable lead times, supporting maintenance schedules and supply chain resilience. The 56J frame, C-face mounting, and open enclosure deliver a practical, retrofit-friendly solution that fits typical Baldor/Reliance pump ecosystems while delivering solid total cost of ownership for pumping applications.
Product Information
Extended Description
7BJL1306A ABB: Pump Motor 0.75 Hp 115 V (JL1306A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,3450RPM,1PH,60HZ,56J,3424L,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JL1306A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYF036: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JL1306A
Gross Volume
2110.969 in³
Gross Weight
33 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.75HP,3450RPM,1PH,60HZ,56J,3424L,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 0.75 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (JL1306A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
68 %
Product Name
56J Jet Pump
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
33 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
11 A | 5.5 A
Rated Efficiency
69 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.50
Service Factor Percentage
1.50 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 3600 RPM, Frame Size 56J, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
J
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: 56J frame with C-face mounting provides universal compatibility with existing motor mounts and standard drive interfaces, reducing retrofit risk and installation time for jet pumps and water-transfer systems. This enables faster commissioning and lower labor costs for field technicians. Feature → Business Impact → Application: 115 V / 230 V, 1-phase, 60 Hz operation simplifies control wiring and integration with common starter panels, delivering reliable performance in residential and light commercial pumping duties. Feature → Business Impact → Application: Open enclosure enhances cooling and accessibility, supporting longevity in warm environments and easy maintenance checks during routine service windows for pool pumps and irrigation systems. Feature → Business Impact → Application: Regreasable 6203 ball bearings extend service life and reduce lubrication-related downtime, providing predictable performance in continuous-duty water transfer applications. Feature → Business Impact → Application: Direct On Line starting minimizes required drive hardware and startup current, enabling straightforward installation in existing control schemes and standard electrical rooms. Feature → Business Impact → Application: Stocked at multiple warehouses in the US and globally, including USA-origin manufacturing, offering 0-day or near-zero lead times for critical pump replacements and minimizing production interruptions.
Get a Quick Quote for a ABB 7BJL1306A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BJL1306A?
Enquire Now
FAQs
Yes. The 7BJL1306A uses a 56J frame with C-face mounting and an OPEN enclosure, matching standard Baldor/Reliance mounting patterns. This simplifies retrofits and replacements in jet pump assemblies and water-transfer setups, reducing alignment efforts and minimizing panel rewiring. Always verify shaft alignment and mounting footprint before replacement.
The motor operates at 115 V or 230 V, is single-phase (1PH), 60 Hz, with a nominal speed of 3450 r/min. It is rated for 0.75 HP and a service factor of 1.50. The Rated Current is 11 A (In) / 5.5 A, and it features a 56J frame and 6203 ball bearings for durable operation.
Yes. Its 0.75 HP output, 60 Hz single-phase operation, and 56J frame are well suited for jet pumps, small wells, and irrigation tasks. The OPEN enclosure and C-face mounting support easy cooling and installation in typical pump housings, while regreasable bearings extend maintenance intervals in monitoring-intensive water-transfer systems.
This motor carries CSA and UR listings, indicating compliance with safety and electrical standards for North American use. The design aligns with NEMA guidelines, ensuring compatibility with standard controls and panels. These certifications help mitigate procurement risk, simplify regulatory approvals, and support reliable field operation in industrial and commercial environments.
Stocked at multiple warehouses with US-origin production, the 7BJL1306A offers fast fulfillment and low downtime. This reduces expediting costs and ensures quicker replacements in maintenance windows, improving total cost of ownership and ROI for pumping systems in water treatment, irrigation, and small-scale processing facilities.
