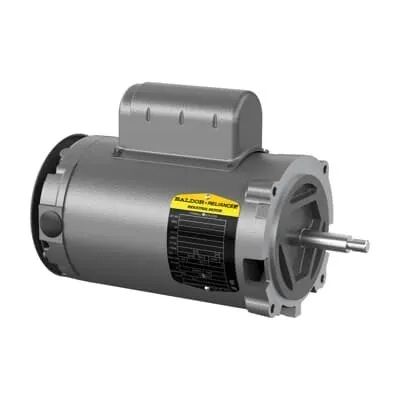

ABB 7BJL1309A Pump Motor - Open Frame CSA UR
Part Number: 7BJL1309A
Quick Summary
ABB 7BJL1309A Pump Motor is a reliable 1 HP single-phase solution designed for small pump and jet pump applications in light industrial and municipal settings. Operators often struggle with downtime from voltage mismatches, stockouts, and enclosure constraints. This motor ships from multiple U.S. stock locations and carries CSA/UR certification along with RoHS compliance, supporting fast procurement and regulatory alignment. With a 56J frame, open enclosure, and direct-on-line start, it delivers straightforward installation and strong lifecycle performance, while 115/230 V operation broadens compatibility. Designed for continuous duty in demanding environments, it helps maintain uptime and reduce total cost of ownership.
Product Information
Extended Description
7BJL1309A ABB: Pump Motor 1 Hp 115 V (JL1309A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,3450RPM,1PH,60HZ,56J,3428L,OPEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JL1309A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
N
Dimension Diagram
34LYF156: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JL1309A
Gross Volume
2200.078 in³
Gross Weight
32 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
1HP,3450RPM,1PH,60HZ,56J,3428L,OPEN,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 1 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (JL1309A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
65 %
Product Name
56J Jet Pump
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
32 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14 A | 7 A
Rated Efficiency
65 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.40
Service Factor Percentage
1.40 %
Shaft Diameter
0.63 in
Short Description
1 HP, 3600 RPM, Frame Size 56J, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
L
Voltage Rating
115 V | 230 V
