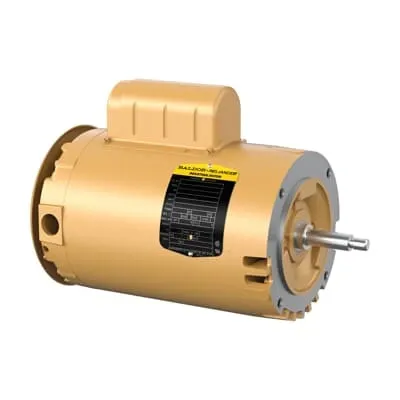

ABB 7BJL1317A Pump Motor - 2 HP, 115/230 V, CSA UR
Part Number: 7BJL1317A
Quick Summary
ABB 7BJL1317A Pump Motor is a 2 HP, single-phase unit ideal for jet pump and water-transfer systems. When engineers face unreliable starting torque, overheating, or long procurement cycles, this motor delivers reliable DOL starting and long service life with straightforward wiring. It carries CSA | UR certification, RoHS compliance, and a NEMA-design OPEN enclosure, ensuring regulatory alignment and safe integration in demanding environments. With a 56J frame and 60 Hz operation, it fits standard pump inventories, helping minimize spare-part variety while reducing maintenance downtime. Stocked at multiple warehouses with fast lead times, this motor supports consistent operation in water-pumping applications and total-cost-of-ownership reduction for OEMs and service teams.
Product Information
Extended Description
7BJL1317A ABB: Pump Motor 2 Hp 115 V (JL1317A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3450RPM,1PH,60HZ,56J,3528L,OPEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JL1317A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE522: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JL1317A
Gross Volume
3496.049 in³
Gross Weight
45 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
2HP,3450RPM,1PH,60HZ,56J,3528L,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 2 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (JL1317A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
69 %
Product Name
56J Jet Pump
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
45 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
26 A | 13 A
Rated Efficiency
70 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35E522W183
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.20
Service Factor Percentage
1.20 %
Shaft Diameter
0.63 in
Short Description
2 HP, 3600 RPM, Frame Size 56J, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
G
Voltage Rating
115 V | 230 V
Feature: 2 HP, 115/230 V, 1PH, 60 Hz capability. Business Impact: Simplifies electrical design and enables direct-on-line starting, reducing control gear, wiring complexity, and installation time. Application: Jet pump installations and domestic/commercial water-transfer systems. Feature: OPEN enclosure with 56J frame and C-Face mounting. Business Impact: Eases installation in standard pump housings and accelerates replacement, minimizing downtime. Application: Open-enclosure pump installations in mechanical rooms or wet environments. Feature: Regreasable bearings (6205) and 6203 NDE. Business Impact: Extends service life, lowers maintenance costs, and lowers spare-parts inventory. Application: Continuous-duty pumping in remote facilities. Feature: RoHS compliance and CSA | UR certification. Business Impact: Reduces regulatory risk and procurement complexity, streamlining compliance for regulated industries. Application: OEM builds and service contracts requiring certified electronics. Feature: 2P frame with 3450 r/min speed and 70% efficiency. Business Impact: Improves overall system efficiency and predictable performance, cutting energy costs. Application: High-demand water-pumping cycles in residential and light commercial setups. Feature: 115 V / 230 V voltage rating and 60 Hz operation. Business Impact: Flexible power sourcing and simple control wiring, enabling quicker commissioning. Application: Worldwide installation in regions with split-volt utility supplies.
Get a Quick Quote for a ABB 7BJL1317A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BJL1317A?
Enquire Now
FAQs
Yes. The 7BJL1317A uses a 56J frame with a C-Face drive end and an OPEN enclosure, aligning with standard jet-pump installations and widely available 56J accessories for straightforward mounting and quick replacement.
The motor operates at 2 HP, 115 V / 230 V, 1-phase, 60 Hz with Direct On Line starting. Rated current is 26 A at 115 V and 13 A at 230 V, providing a reliable start with minimal auxiliary equipment.
Yes. It is designed for continuous-duty (Type of Duty: Continuous) with a robust 56J frame, open enclosure, and regreasable bearings, delivering consistent performance in jet-pump and water-transfer applications.
The motor is CSA | UR certified and RoHS compliant, with NEMA design considerations. This reduces regulatory risk for regulated industries and simplifies supplier qualification and end-customer approvals.
Regreasable bearings reduce routine maintenance intervals, while the 56J frame and open design simplify field servicing and part replacements. The combination of reliability, standard footprint, and regulatory compliance supports lower total cost of ownership over the motor’s life cycle.
