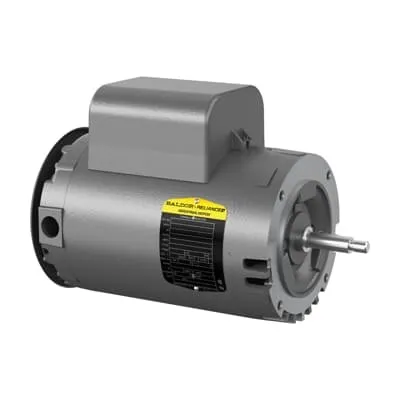

ABB 7BJL1323A Pump Motor - 3 HP, 230V, CSA UR
Part Number: 7BJL1323A
Quick Summary
ABB 7BJL1323A Pump Motor is a 3 HP, 230 V single-phase unit for jet pump systems. Engineers struggle with reliable starts, vibration, and maintenance costs when selecting open-enclosure, 1-phase motors. This ABB motor carries CSA/UR certification and RoHS compliance, plus a 56J frame and C-face mounting for robust industrial integration. By combining compact footprint with open enclosure design, it supports straightforward installation and predictable uptime, delivering tangible cost savings. Its 3 HP output, 56J frame, 1-phase 60 Hz performance delivers reliable flow in open pumps with minimal cooling requirements. In today’s water-handling applications, this motor aligns with 230 V grids, 60 Hz plants, and standard pump equipment to future-proof your assets.
Product Information
Extended Description
7BJL1323A ABB: Pump Motor 3 Hp 230 V (JL1323A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,1PH,60HZ,56J,3535LC,OPE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JL1323A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYH992: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JL1323A
Gross Volume
2110.969 in³
Gross Weight
52 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,3450RPM,1PH,60HZ,56J,3535LC,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 3 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (JL1323A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
93 %
Product Name
56J Jet Pump
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
52 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13 A
Rated Efficiency
82.50 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
3 HP, 3600 RPM, Frame Size 56J, C-Face, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
K
Voltage Rating
230 V
Feature: 3 HP, 230 V single-phase design with 56J frame and C-face mounting. Business Impact: Delivers robust starting torque in a compact footprint that fits standard pump housings, reducing installation time and retrofit costs. Application: Ideal for jet pump installations in water transfer and small-scale pumping systems. Feature: Open enclosure design (OPEN). Business Impact: Enables effective cooling in various environments and simplifies field access for inspection and maintenance. Application: Suitable for both indoor and outdoor pump installations where enclosure protection is not required. Feature: Regreasable lubrication and durable bearings (6205 Ball). Business Impact: Extends service intervals, lowers total cost of ownership, and reduces unexpected downtime. Application: Frequent cycling in aquifer or well-pump applications where bearing life matters. Feature: RoHS compliance and CSA | UR certification. Business Impact: Ensures regulatory compliance and supply-chain confidence, reducing risk in regulated markets. Application: Industrial facilities with strict procurement standards and quality audits. Feature: Direct On Line starting and 1-phase operation (60 Hz). Business Impact: Fast, simple start-up with minimal control hardware, lowering installation complexity and energy loss during start. Application: Utility-scale lighter-duty pumping where space and simplicity matter. Feature: 56J frame and 230 V, 60 Hz specification with 3450 rpm running speed. Business Impact: Compatibility with standard pump adapters and broad availability of replacement parts, reducing downtime. Application: Water-transfer and jet-pump systems across manufacturing and processing facilities.
