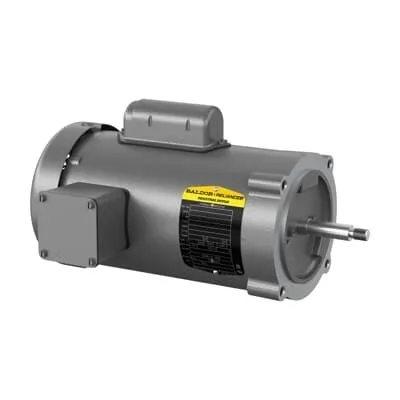

ABB 7BJL3501A Pump Motor - TEFC Enclosure, 60 Hz
Part Number: 7BJL3501A
Quick Summary
ABB 7BJL3501A Pump Motor is a compact single-phase motor designed for small jet pump applications, delivering 0.33 HP at 60 Hz. This design supports 115/230 V operation, enabling flexible integration with common power supplies on the job site. Upgrading older pumps can lead to downtime; this model prioritizes reliability with a robust TEFC enclosure and a 56J frame for straightforward mounting. Certifications include CSA | UR and NEMA alignment, plus RoHS compliance, helping you meet safety, regulatory, and sustainability targets. The motor’s regreasable bearings and solid 6203 ball bearings extend service life, while the 1725 r/min rating balances performance and efficiency. Stocked across multiple warehouses, it offers fast procurement for time-critical projects and easier spares planning.
Product Information
Extended Description
7BJL3501A ABB: Pump Motor 0.33 Hp 115 V (JL3501A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1725RPM,1PH,60HZ,56J,3414L,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JL3501A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LY3099: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JL3501A
Gross Volume
1400.25 in³
Gross Weight
22 lb
Horsepower Rating UL/CSA
0.330 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.33HP,1725RPM,1PH,60HZ,56J,3414L,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 0.33 HP, 1800 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (JL3501A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
60 %
Product Name
56J Jet Pump
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Weight
22 lb
Product Net Width
10.813 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6 A | 3 A
Rated Efficiency
60 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.35
Service Factor Percentage
1.35 %
Shaft Diameter
0.63 in
Short Description
0.33 HP, 1800 RPM, Frame Size 56J, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
L
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 0.33 HP, single-phase 60 Hz design with 115/230 V capability enables flexible power sourcing on site, reducing wiring changes and inventory needs while delivering reliable pump performance in small jet pump systems. Application: Ideal for water transfer and domestic pumping tasks where quick installation and compatibility with standard electrical supply are critical. Feature → Business Impact → Application: TEFC enclosure with a 56J frame provides durable protection against dust and moisture ingress while simplifying mounting in compact pump assemblies. Application: Suitable for horizontal mounting with C-face flange in compact pump housings, enabling straightforward OEM integration. Feature → Business Impact → Application: Regreasable bearings (6203 ball) extend bearing life and reduce maintenance costs; paired with a service factor of 1.35, this motor sustains higher load tolerance during peak pump demand. Application: Beneficial for continuously operated jet pumps in light industrial and agricultural settings where uptime matters. Feature → Business Impact → Application: RoHS compliant, NEMA-aligned design minimizes regulatory risk and supports sustainability initiatives; combined with CSA|UR certifications, this motor satisfies safety and electrical standards. Application: Appropriate for compliant installation in US-based facilities and regulated environments. Feature → Business Impact → Application: 1-phase operation with 1725 r/min and 60 Hz performance offers predictable pump curves and energy efficiency in standard water systems. Application: Widely used in residential and small commercial pump installations requiring reliable, easy-to-source motors. Feature → Business Impact → Application: C-face mounting, horizontal orientation, and 56J frame support fast retrofits and straightforward field maintenance. Application: Enables quick swaps for aging motors in existing jet pump configurations, reducing downtime and service disruption.
